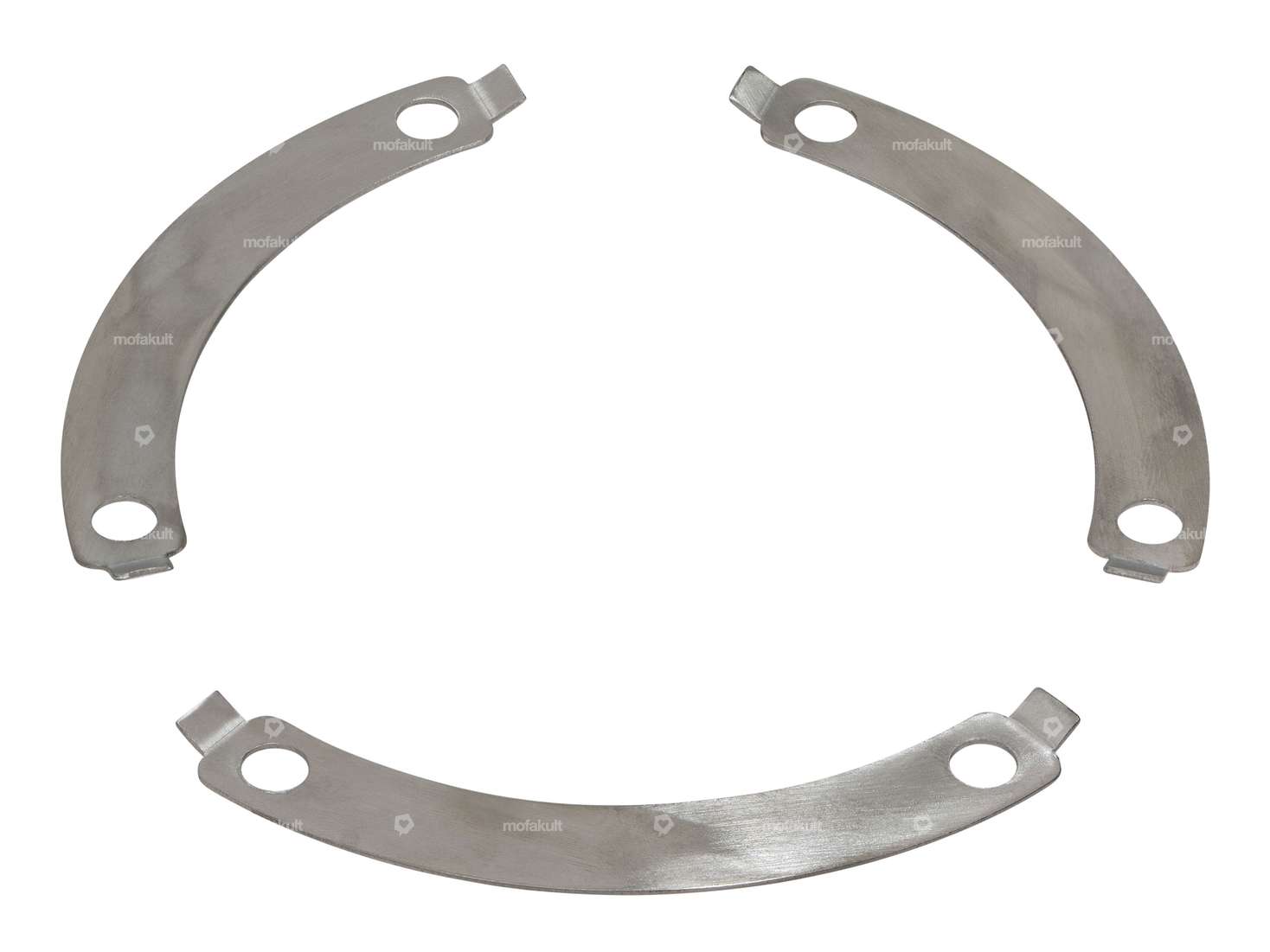

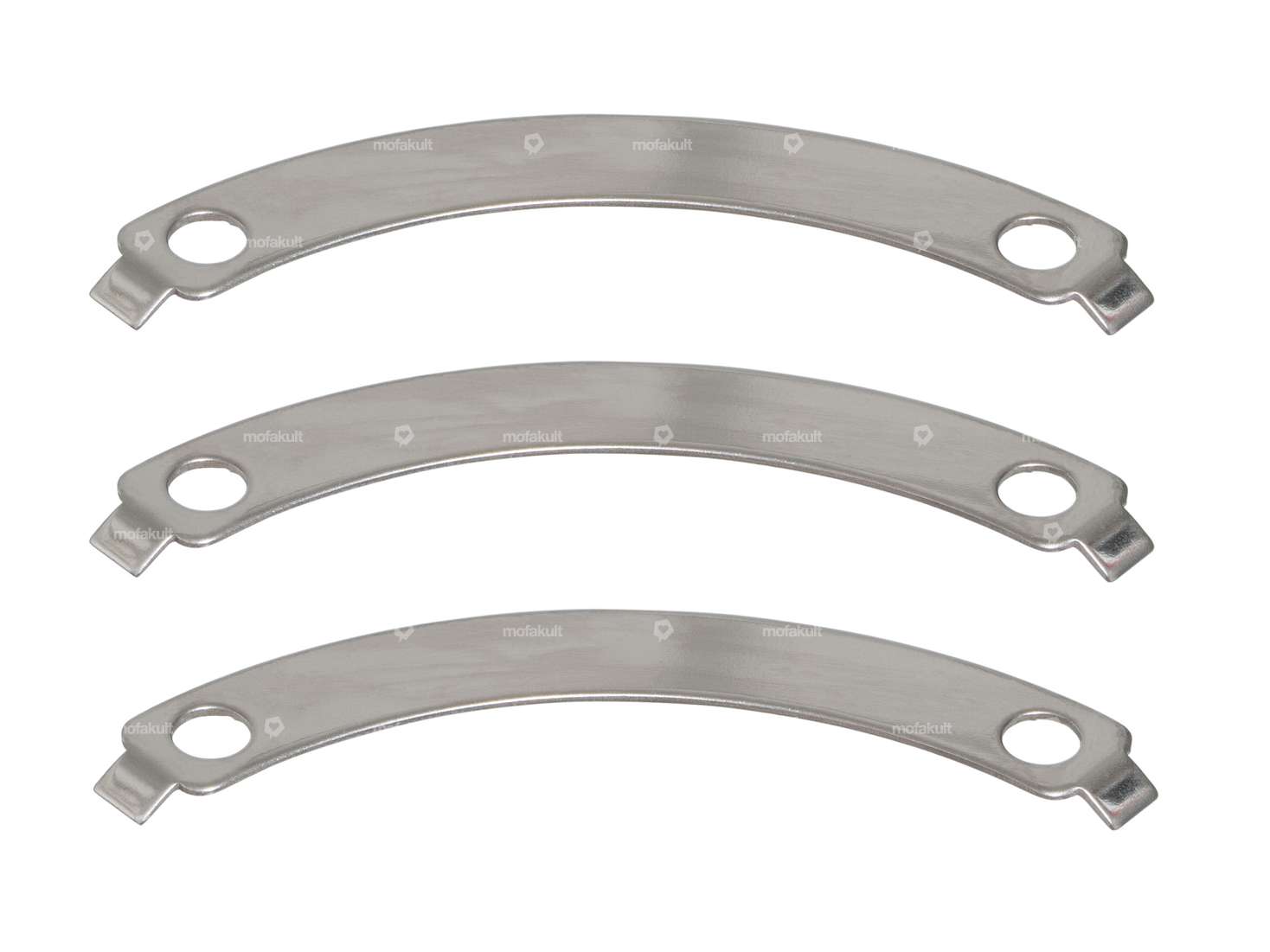

Securing plates made of stainless steel for securing sprockets with 5-hole mount and 72° pitch on your moped / moped with Grimeca hub.
The pre-stressed plates are used to secure the bolts on the sprocket. During assembly, two plates must be placed on top of each other. The locking tab on the lower plate must be cut off or knocked straight.
Number of plates: 3 pcs.
Thickness: 1 mm
Pitch: 72°
Pitch circle: 115 mm
Number of fixing points: 5 pcs.
Material: Chrome steel (stainless steel)
Matching sprockets and screw sets can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (known as Nirosta®) |
| Number of lobes | 6 pcs |
| Thickness | 1 mm |
| Ø bolt circle | 115 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
