With this tool, you can determine the top dead center of the piston to an accuracy of 0.01 mm and thus perfectly adjust the ignition of your moped, moped, small motorcycle or any other vehicle.

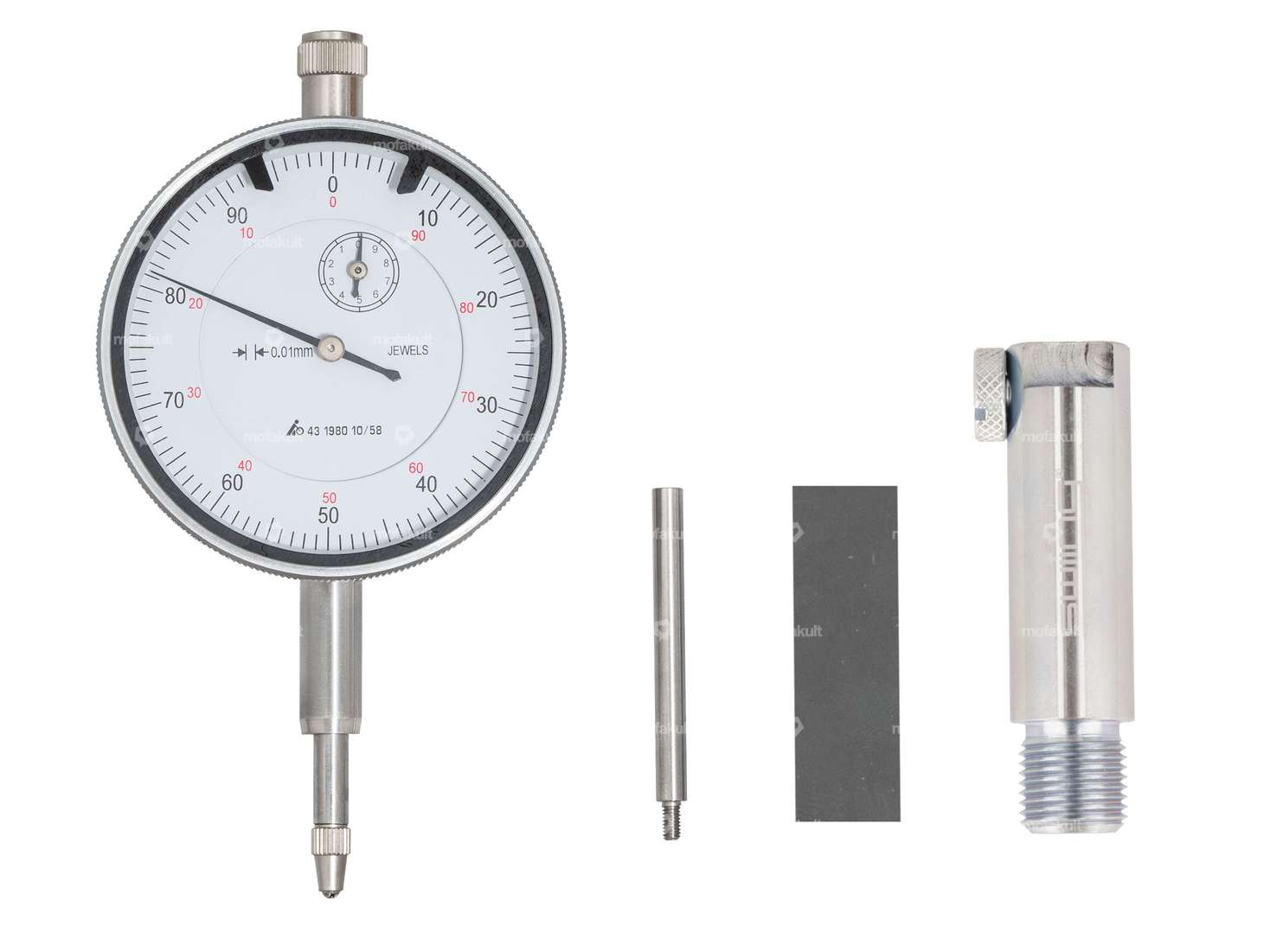

Scope of delivery:
- 0.01 mm blade gauge for between breaker contacts
- Mounting piece with M14 x 1.25 thread with slotted head screw for clamping

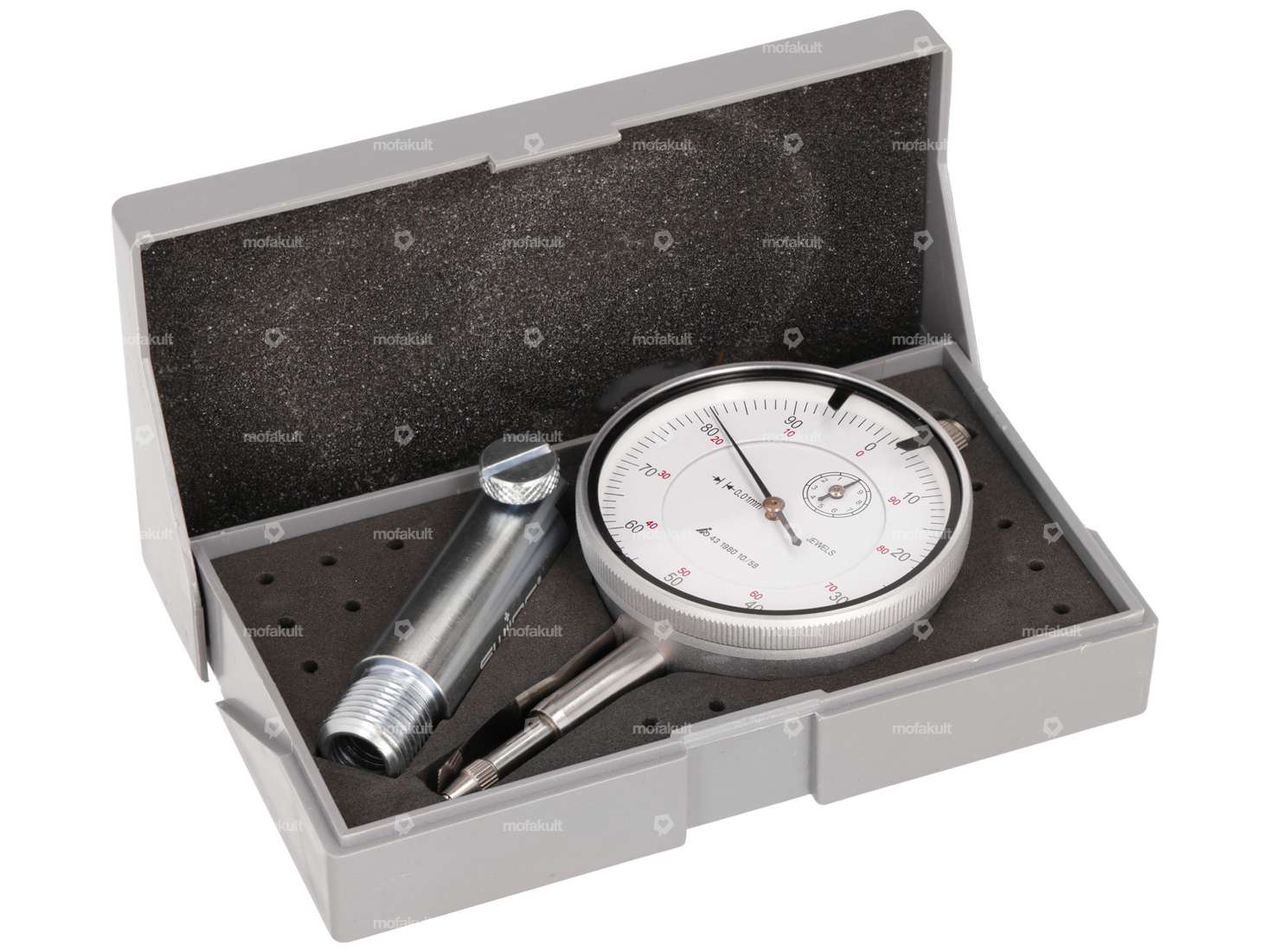

- Dial gauge (incl. sturdy plastic box)
- Dial gauge with M14 x 1.25 thread with slotted head screw for clamping
- Dial gauge (incl. sturdy plastic box)
- Dial gauge extension

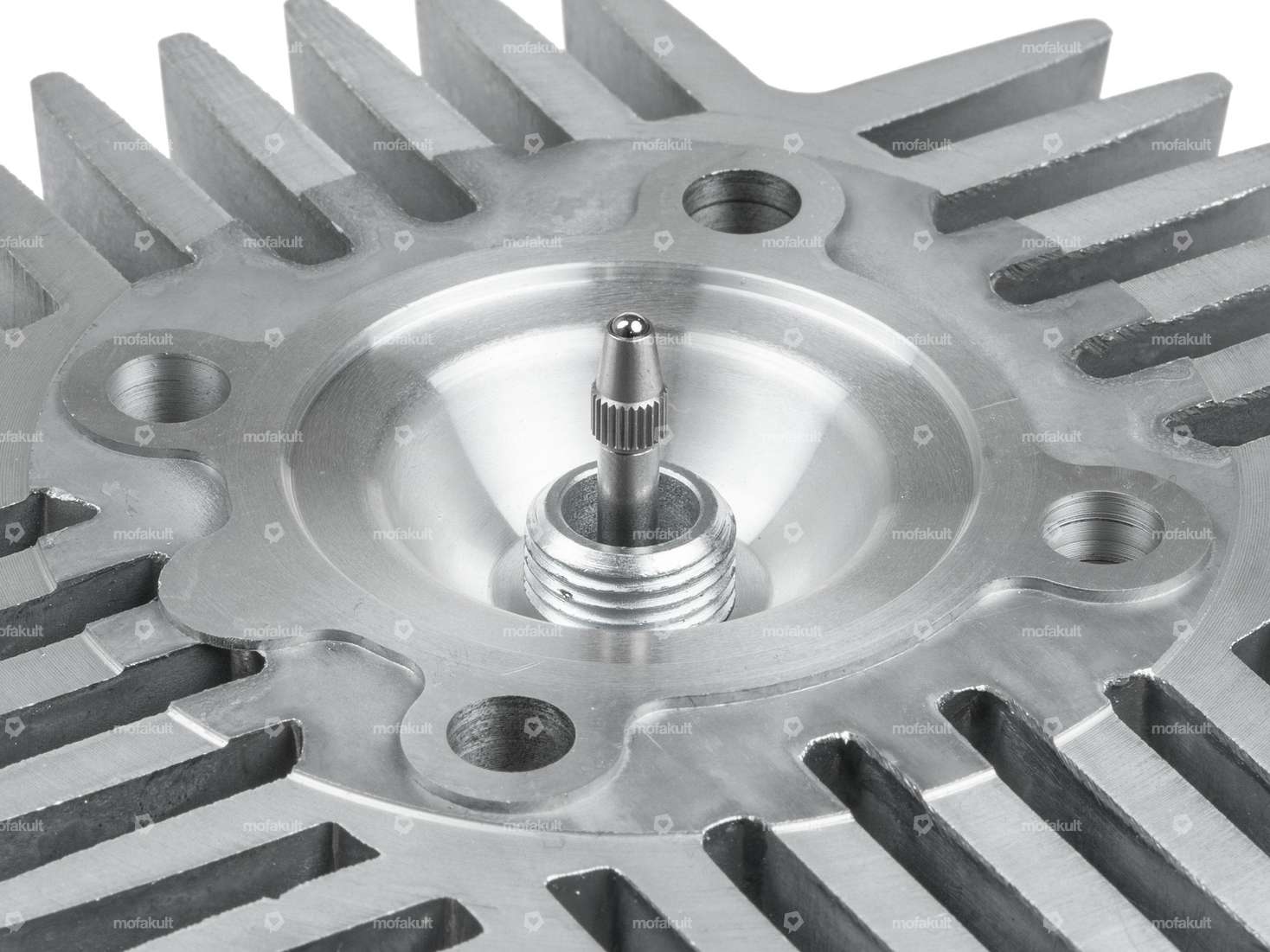

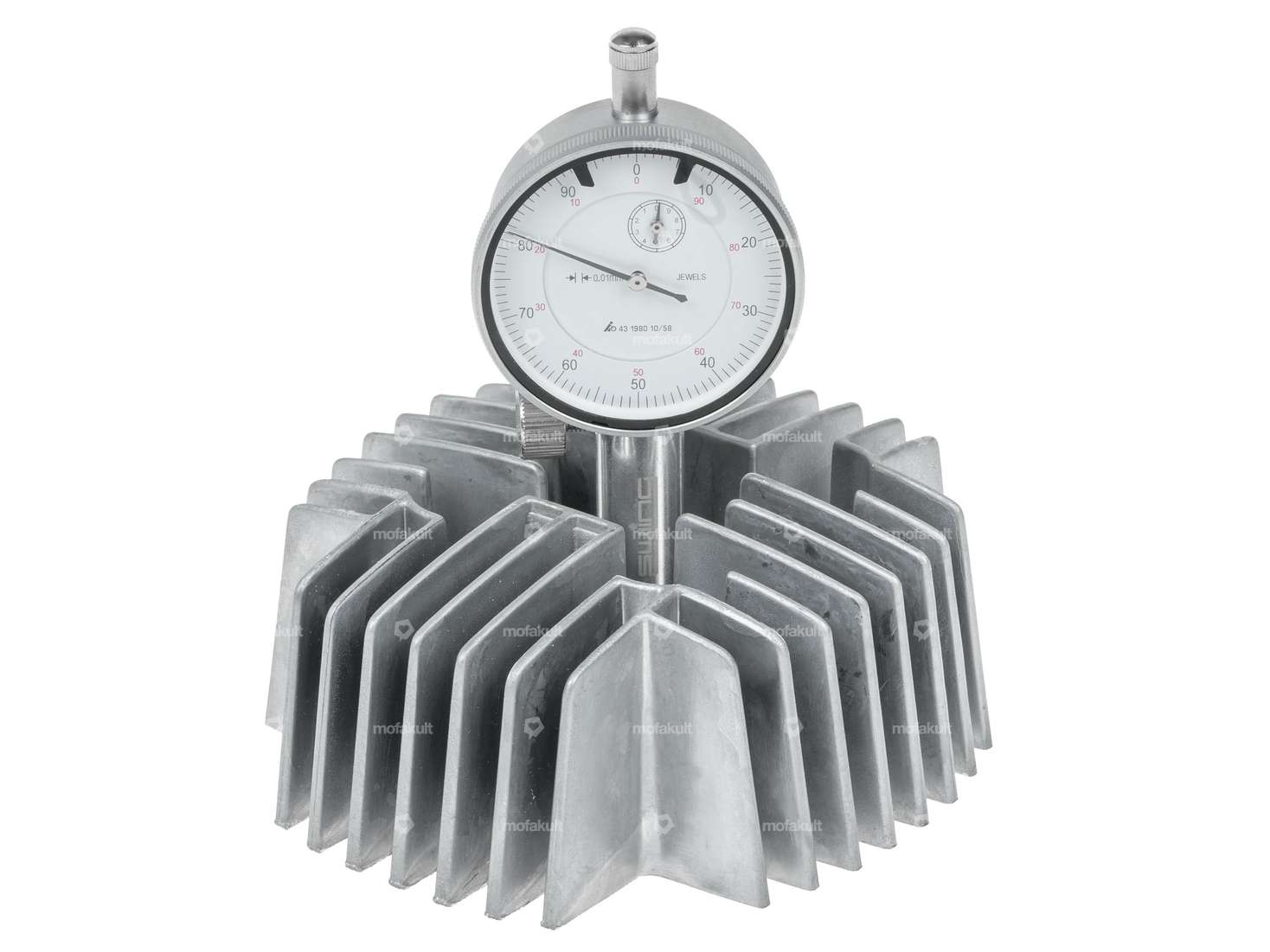

Figures 3 & 4 are for illustration purposes only.
Exceptional product for the highest demands of the quality brand swiing®.
Original Puch spare part number: 905.6.32.101.0
For all mopeds.
Details
| Manufacturer | swiing® ingenious parts |
| Area of application | Measuring tool |
| Number of components | 4 pcs |
| Thread type | MF14x1.25 (fine pitch thread) |
| Puch OEM number | 905.6.32.101.0 |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo | |
| Tomos | |
| Cilo |
