Spare parts catalog (Switzerland, Germany, Norway) for Puch VZ 4-speed mopeds / mopeds.
The following types are described in the catalog:

VZ 50 MN
VZ 50 S
VZ 50 M

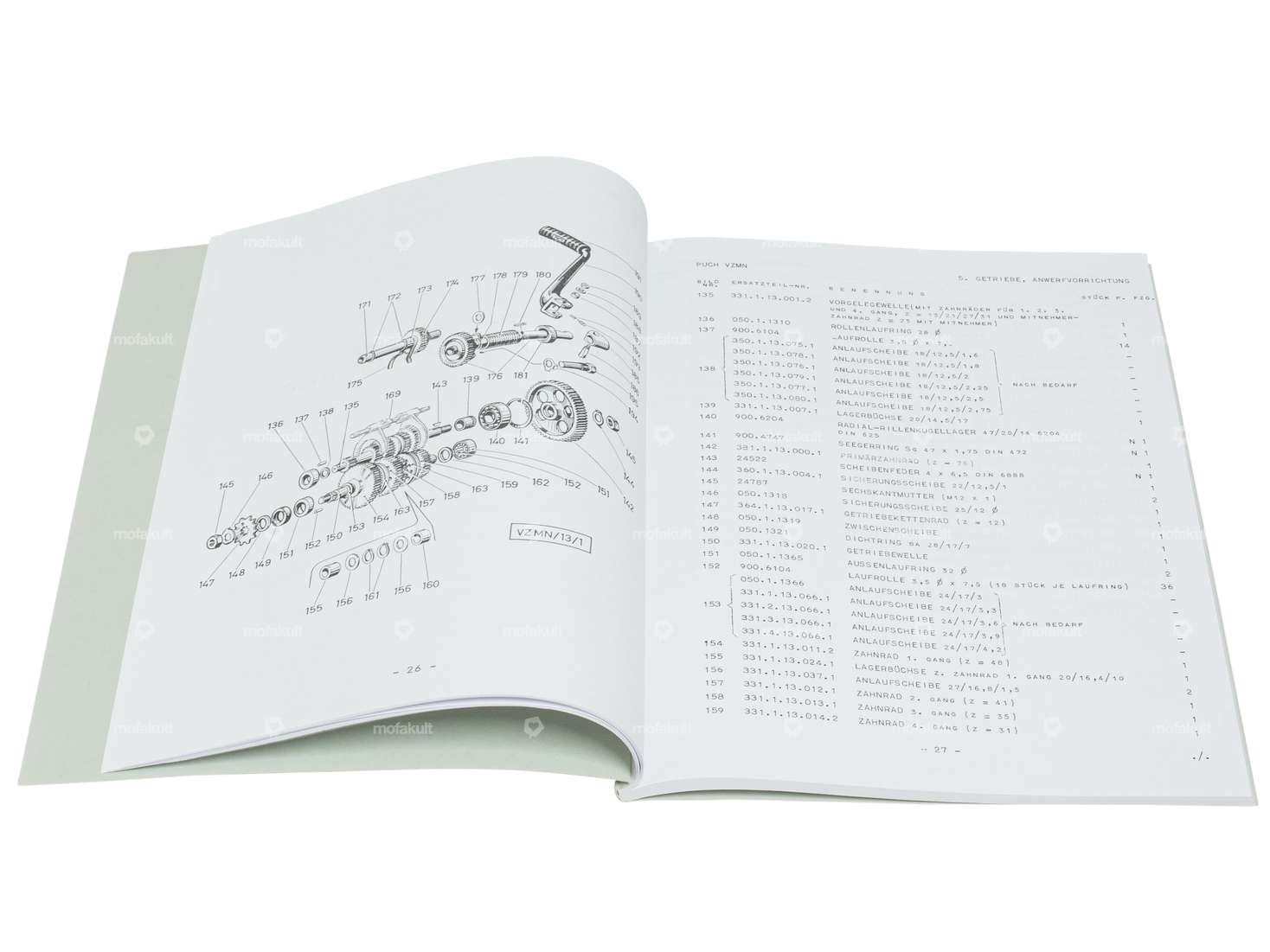

Each individual component is shown with the appropriate spare part number and the correct mounting location using many exploded drawings.

Size: A4 (210 x 297 mm)
Pages: 102
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, operating and repair instructions in the accessories section.

Details

Width	210 mm
Material	Paper
DIN format	A4
Number of pages	102 pcs
Language	German
Height	279 mm

Suitable for the following models

Puch

3-speed VSD, DS, VZ, MC
