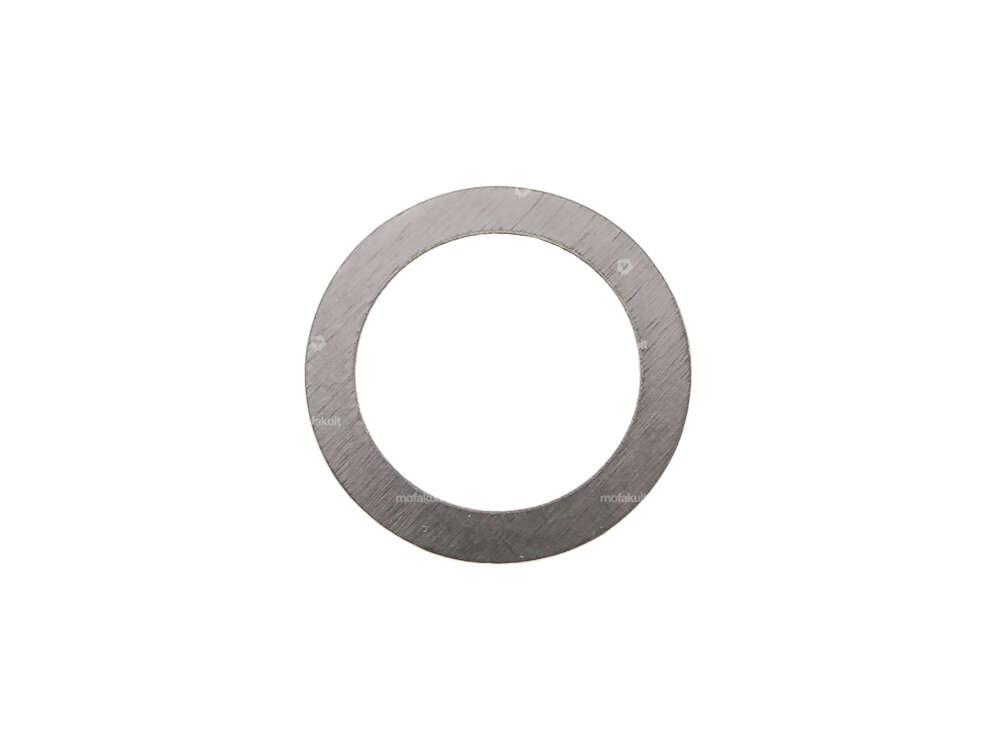

Shim 16/22/0.5

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Material: Brass · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Width: 10 mm · Stock number: BO15 · Ø outside: 40 mm · Ø inside: 15 mm · Area of application: Standard · Ball bearing closed: No · Sachs OEM no.: 0932 007 001 · Pony OEM number: A4502

Shim 15/21/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter inside: 15 mm · Ø outside: 21 mm · Ø inside: 15 mm · Thickness: 0.5 mm

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Number of components: 3 pcs · Material: Plastic · Material: Steel · Area of application: Standard

Wedge 12.1x4.9x3 mm

Material: Steel · Width: 3 mm · Total length: 12.5 mm · Height: 4.9 mm

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Thread length: 16 mm · Area of application: Racing · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø piston pin (B): 12 mm · Weight: 705 g · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Thread type: M8x1.25 (standard thread) · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Weight: 698 g · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Area of application: Racing · Number of gears: 1 pcs

SKF 6202 C3 ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Width: 11 mm · Stock number: 6202 · Ø outside: 35 mm · Ø inside: 15 mm · Puch OEM number: 900.4.6202

Spacer washer 16/22/0.5 pinion shaft / pedal shaft | Sachs

Ø inside: 16.1 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm · Thickness: 0.5 mm · Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Pony OEM number: A1574 · Sachs OEM no.: 0244 081 002

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Ø inside: 16 mm · Nominal diameter inside: 16 mm · Ø outside: 22 mm

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 15 mm · Ø outside: 35 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Material: Steel · Stock number: E15 · Area of application: High End · Area of application: Standard · Bearing type: Deep groove ball bearing · Width: 8 mm · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
