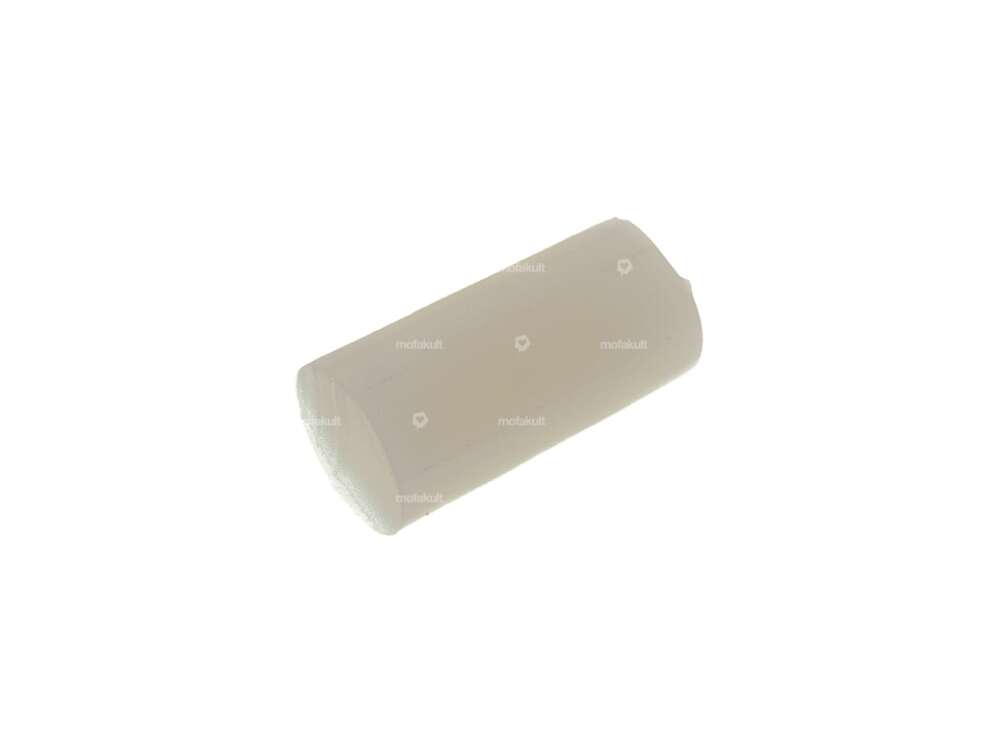

Rubber stop kickstart mechanism | Sachs

GPO chain tensioner | Puch Maxi S

Manufacturer: GPO · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Number of teeth: 10 pcs · Ø outside sprocket: 36 mm · Color: black · Color: silver · Total length: 175 mm · Thread type: M6x1 (standard thread) · Number of fixing points: 1 pcs

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 45 pcs · Ø bolt circle: 105.5 mm · Ø inside: 94 mm · Ø mounting hole: 6.7 mm · Thickness: 4.5 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs · Color: black

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm · Material: Steel

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Manufacturer: Sachs · Material: NBR · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

swiing® revival gasket cylinder base 0.3 mm | Sachs 50, 50/3, 50/4 DE engines

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Hole pattern [mm]: 40.5 x 51

Kickstarter wheel 41 teeth | Sachs

Material: Metal · Number of teeth: 41 pcs

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Ø inside: 15 mm · Ø outside: 30 mm · Width: 7 mm · Manufacturer: Sachs · Material: NBR · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Material: Steel · Area of application: High End · Area of application: Standard · Pony OEM number: A2531 · Sachs OEM no.: 0286 079 105
