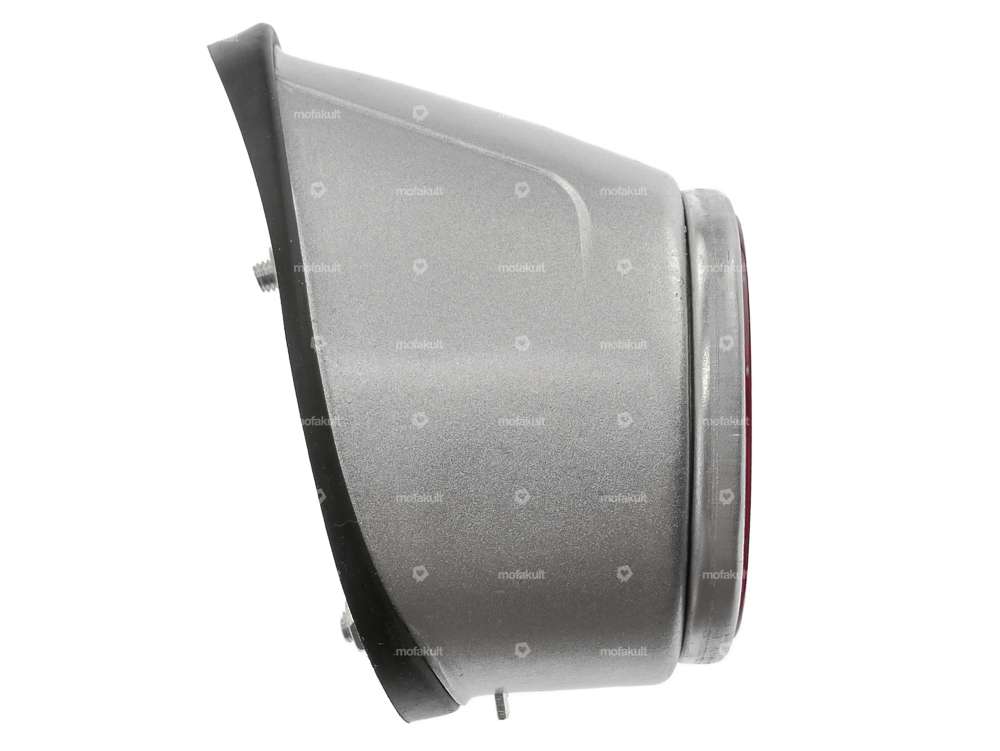

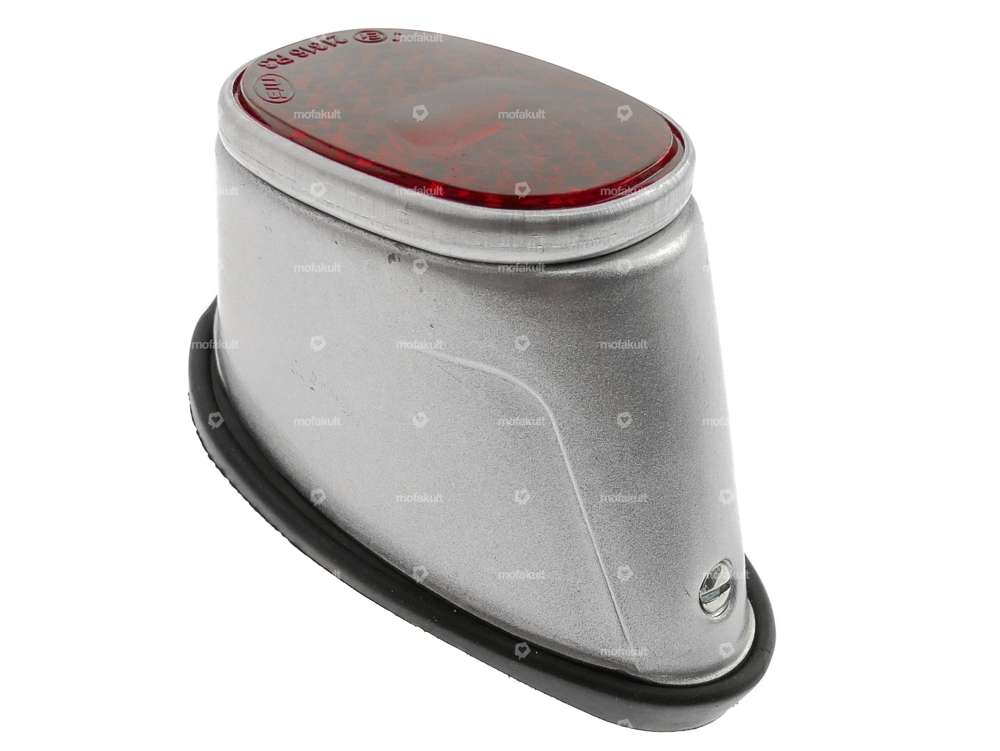

Simple, silver rear light in "old school design". Very similar to old Hella, ULO or CEV rear lights.
Replica product that comes very close to the original.

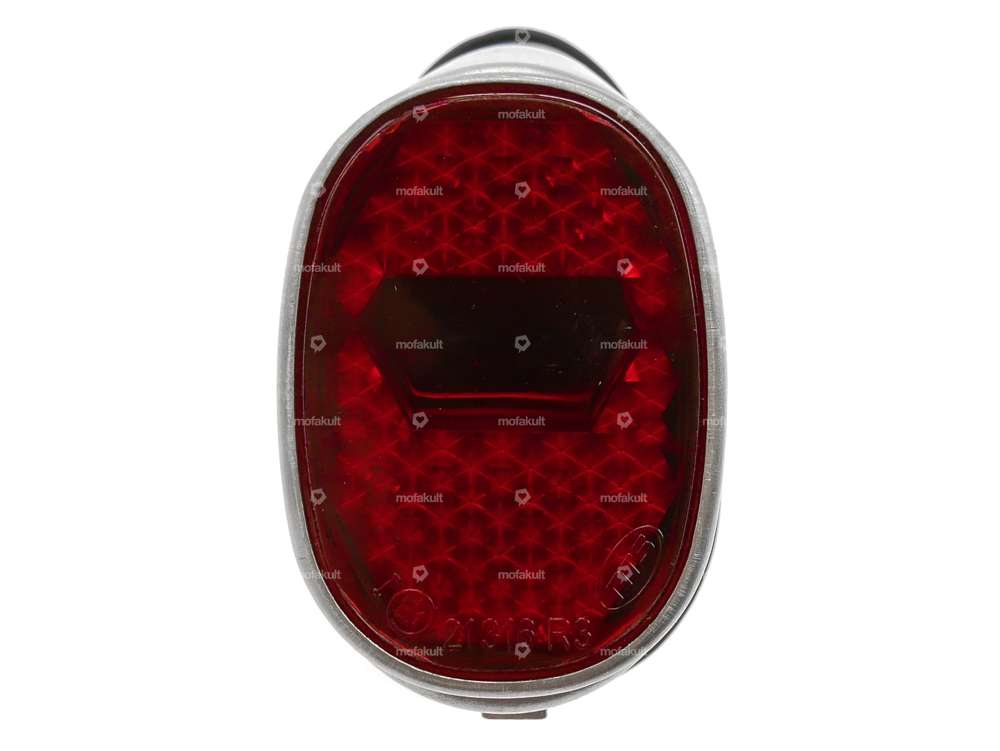

The red lamp glass is embedded in an aluminum socket.
Fixed with two M5 screws.
Screw spacing: 50 - 58 mm (slotted hole on one side)

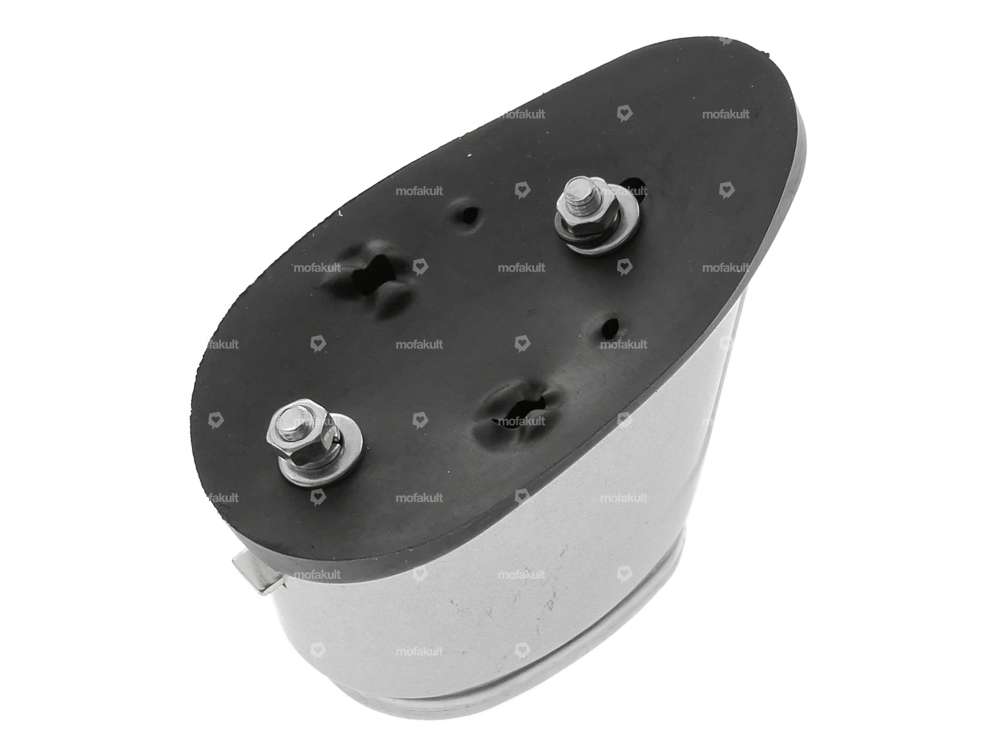

The rubber base is already fitted.

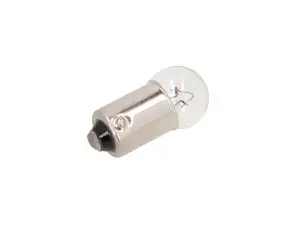

Bulbs with bayonet fitting (E10 socket) are suitable for this round light.
- Total length: 100 mm
- Total width: 57 mm
- Depth: 60 mm
Details
| Width | 57 mm |
| Material | Aluminum |
| Bulb holder | E10 |
| Color | red, silver |
| Mounting type | Nuts & bolts |
| Test mark | E1 |
| Depth | 60 mm |
| Height | 100 mm |
| Brake light | No |
| Battery operated | No |
| Reflectors | Yes |
| Number of fixing points | 2 pcs |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs |
