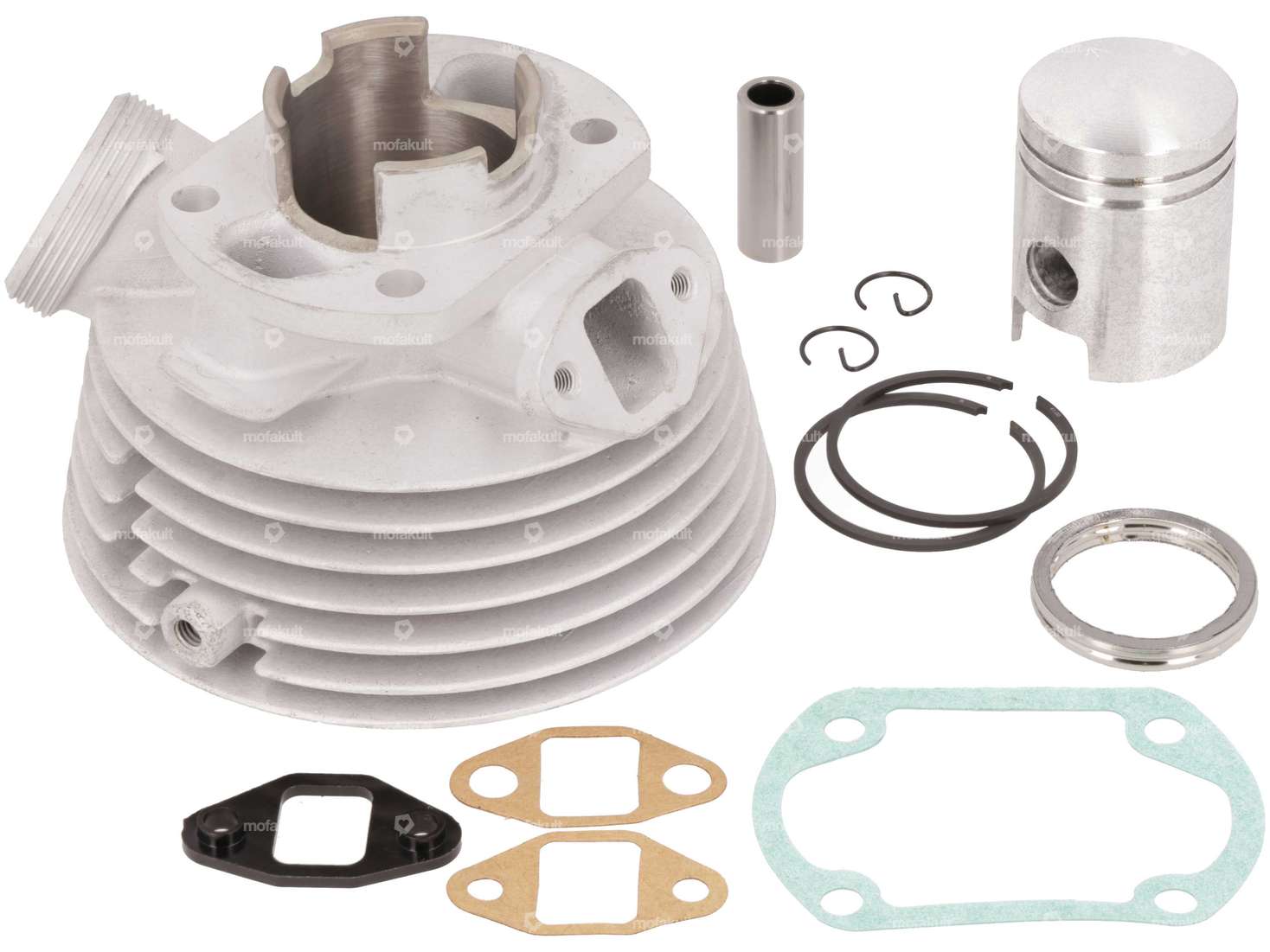

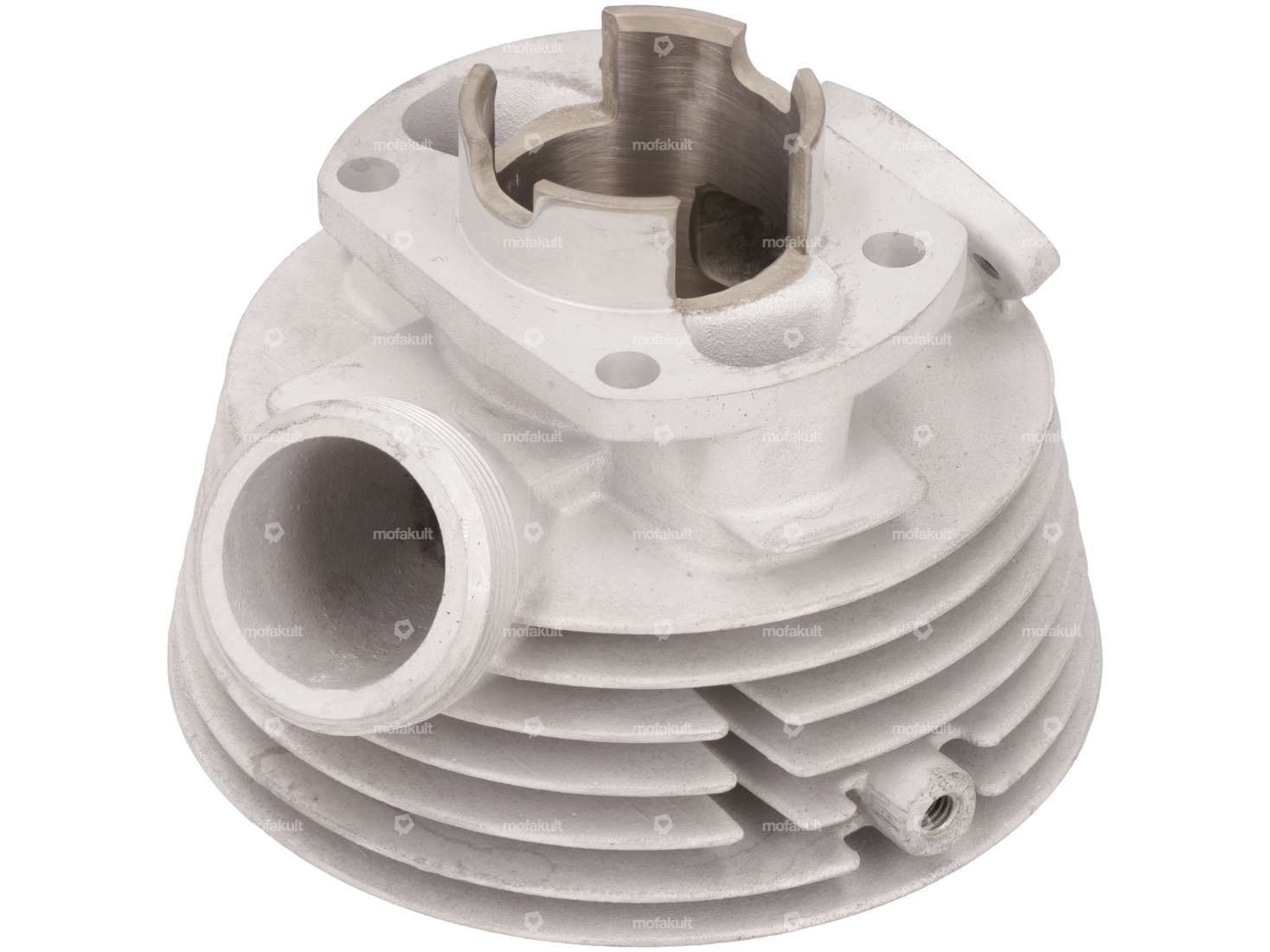

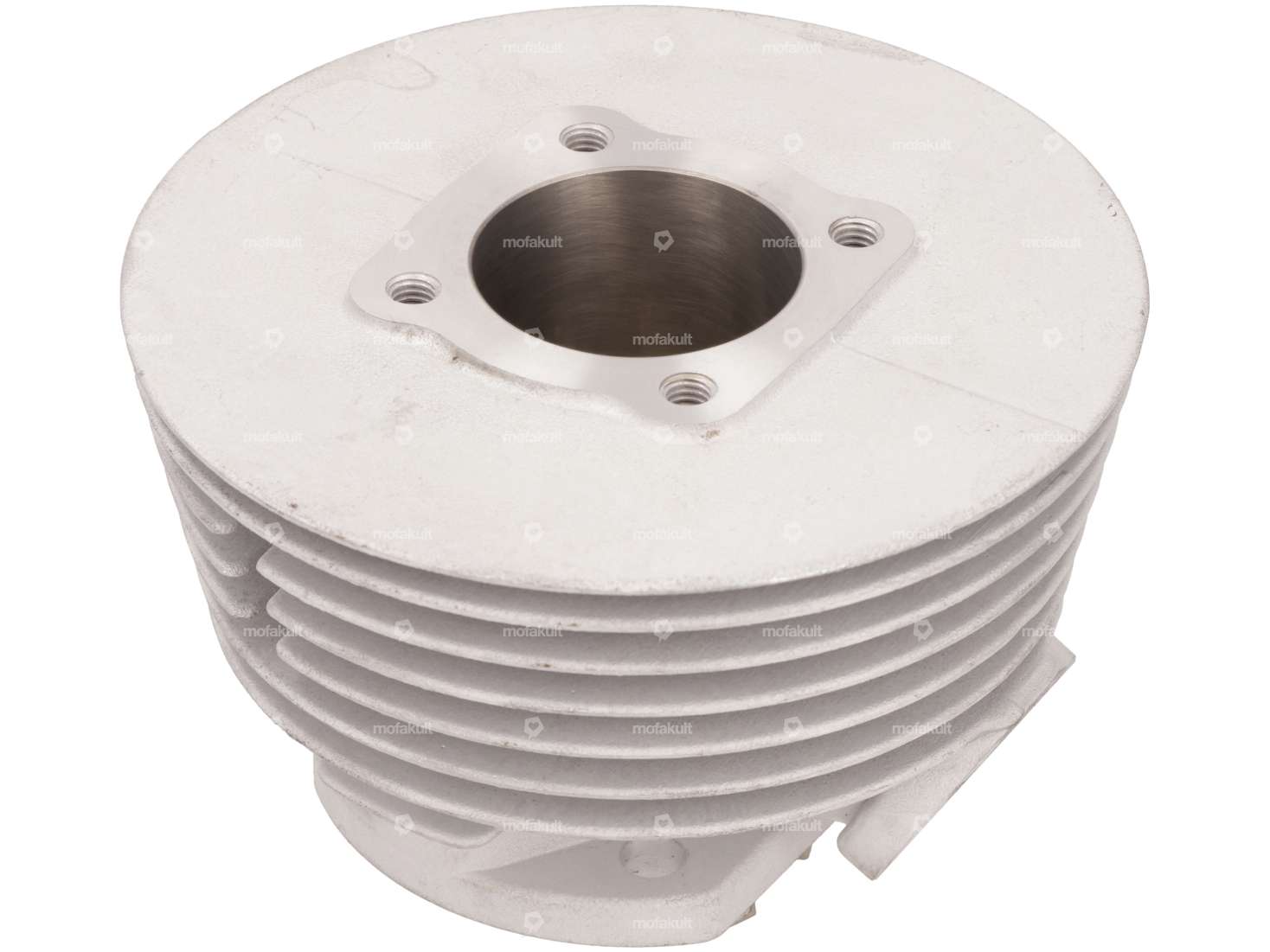

Complete 38 mm aluminum tuning cylinder with nickel-silicon carbide coating (also known under the trademarked brand name Nikasil®) and square inlet for small engines with Sachs 3- and 4-speed engines with foot shift. These engines were used on Hercules 50/3 LS 50/4 LKH, Gritzner etc.
The workmanship of the 50 cc racing cylinder is fine, but could do with some rework on some edges.
In order to be able to mount this racing kit on a Sachs 50/2 engine, various adjustments must be made.
Note: An exhaust nut with M40x1.5 mm thread is required.
The cylinder kit requires a 17 mm Bing SSB carburetor. You can find this and other add-on parts in the accessories section.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Power1 |
| Material | Aluminum |
| Surface | Nickel silicon carbide (known as Nikasil®) |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 44 mm |
| Camouflaged | No |
| Hole spacing inlet | 31 mm |
| Inlet window | 16 x 18 |
| Hole pattern [mm] | 51 x 40 / 37 x 37 |
| Thread inlet | M5x0.8 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Number of fixing points | 4 pcs |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Area of application | Tuning |
Suitable for the following models
| Sachs | 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products

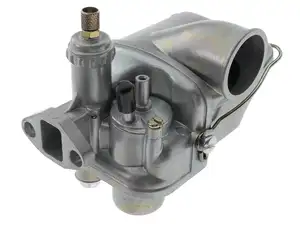

Carburetor 17 mm Bing SSB 1/17/69 reproduction
Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Total length: 116 mm · Carburetor type: SSB · Width: 86 mm · Nominal diameter: 17 mm · Height: 99 mm · Nozzle thread: MF7x0.75 (fine pitch thread) · Nozzle size: 76 · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Area of application: Standard · Area of application: Tuning
EUR 96.10

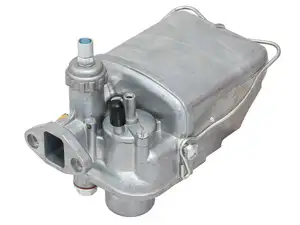

swiing carburetor 17 mm Bing SSB 1/17/69
