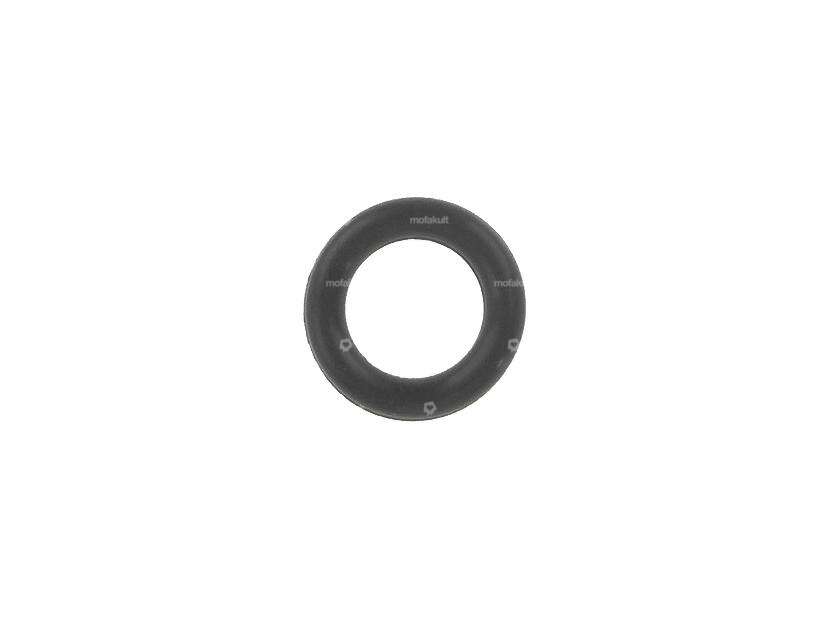

O-ring transmission shaft | Cilo 502T

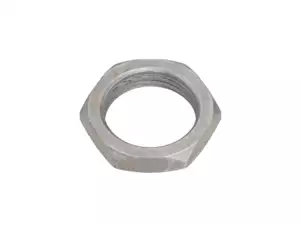

Nut M17x1.25 x 5

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF17x1.25 (fine pitch thread) · Drive: External hexagon · Height: 5.5 mm · Width across flats SW: 22 mm

Oil seal NBR 17/30/7 AS crankshaft | Cilo

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Ø outside: 24 mm · Width: 5 mm · Manufacturer: Cilo · Material: NBR · Surface: rubberized

swiing® revival gasket cylinder head aluminum 38 mm | Cilo 502

Manufacturer: swiing® revival parts · Material: Aluminum · Place of use: Cylinder head · Thickness: 0.3 mm · Ø outside: 47.5 mm · Ø outlet inside: 38 mm

swiing® revival cylinder base gasket | Cilo 502T

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm

swiing® revival gearbox cover gasket | Cilo 502T

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Thickness: 0.4 mm · Number of fixing points: 4 pcs

swiing® revival piston 38 mm | Cilo 502

Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.9 mm · Curvature (D): 5.1 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 78 g

swiing® revival locking plate pinion | Cilo 502

Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø inside: 17 mm · Ø outside: 29.9 mm · Thickness: 0.8 mm

swiing® revival clutch spring new version | Cilo 502

Spring design: Pressure spring · Ø wire: 4 mm · Ø inside: 26.35 mm · Ø outside: 34.4 mm · Total length: 30 mm · Manufacturer: swiing® revival parts

Nut M17x1.25 x 5 Pinion shaft | Cilo 502

Nut type: Hexagon nut · Thread type: MF17x1.25 (fine pitch thread) · Drive: External hexagon · Height: 4.8 mm · Width across flats SW: 22 mm
