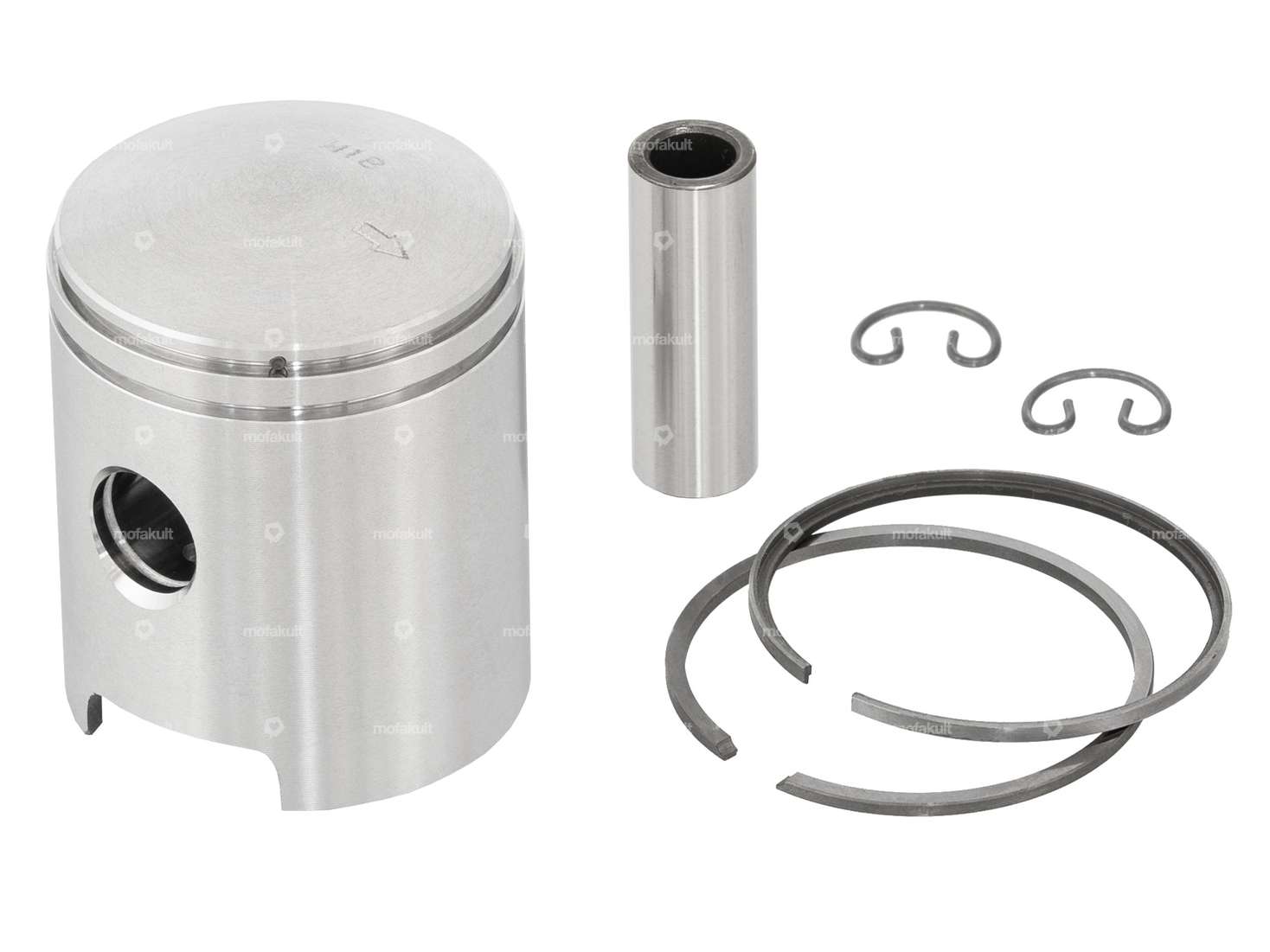

42 mm oversize piston with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) for blown cylinders of Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit is used for bored and honed cylinders.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Manufacturer | Meteor |
| Ø outside piston (A) | 41.95 mm |
| Compression height (C) | 23 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 41 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 97 g |
Suitable for the following models
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products

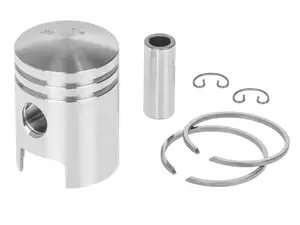

Meteor piston 38 mm #1 | Puch
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 1 · Piston weight: 79 g · Puch OEM number: 349.1.10.106.0/21
EUR 60.00
Meteor piston 38 mm #4 | Puch
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.98 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Tolerance group: 4 · Piston weight: 80 g
EUR 60.00

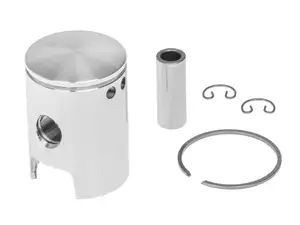

Meteor piston 39 mm oversize | Puch Supermaxi Cat.
Manufacturer: Meteor · Nominal diameter: 39 mm · Ø outside piston (A): 39 mm · Ø piston pin (B): 12 mm · Compression height (C): 24 mm · Curvature (D): 2.3 mm · Total piston height (E): 55.3 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 86 g
EUR 67.20
Meteor piston 39 mm oversize | Puch
Manufacturer: Meteor · Nominal diameter: 39 mm · Ø outside piston (A): 38.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.65 mm · Piston weight: 88 g
EUR 66.00
Piston 43.7 mm Hero oversize | Puch
Nominal diameter: 43.5 mm · Ø outside piston (A): 43.7 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.5 mm · Curvature (D): 2.7 mm · Total piston height (E): 57.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 97 g
EUR 72.00
Meteor piston 38.5 mm oversize | Puch
Manufacturer: Meteor · Nominal diameter: 38.5 mm · Ø outside piston (A): 38.46 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm
EUR 66.00
Not in stock
Moped fans like you also bought:
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Area of application: Standard
EUR 3.35
Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm
Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Drive: Slot · Ø Cable bushing: 1.6 mm · Total length: 6 mm · Screw head: Lens head · Thread length: 4 mm · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread)
EUR 2.40
Meteor piston 39 mm oversize | Puch
Manufacturer: Meteor · Nominal diameter: 39 mm · Ø outside piston (A): 38.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.2 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.65 mm · Piston weight: 88 g
EUR 66.00

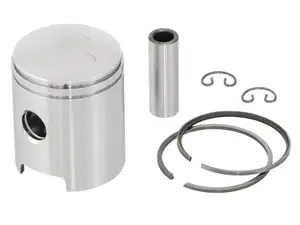

Meteor piston 40.5 mm (12 mm KoBo) | Puch X30 Velux
