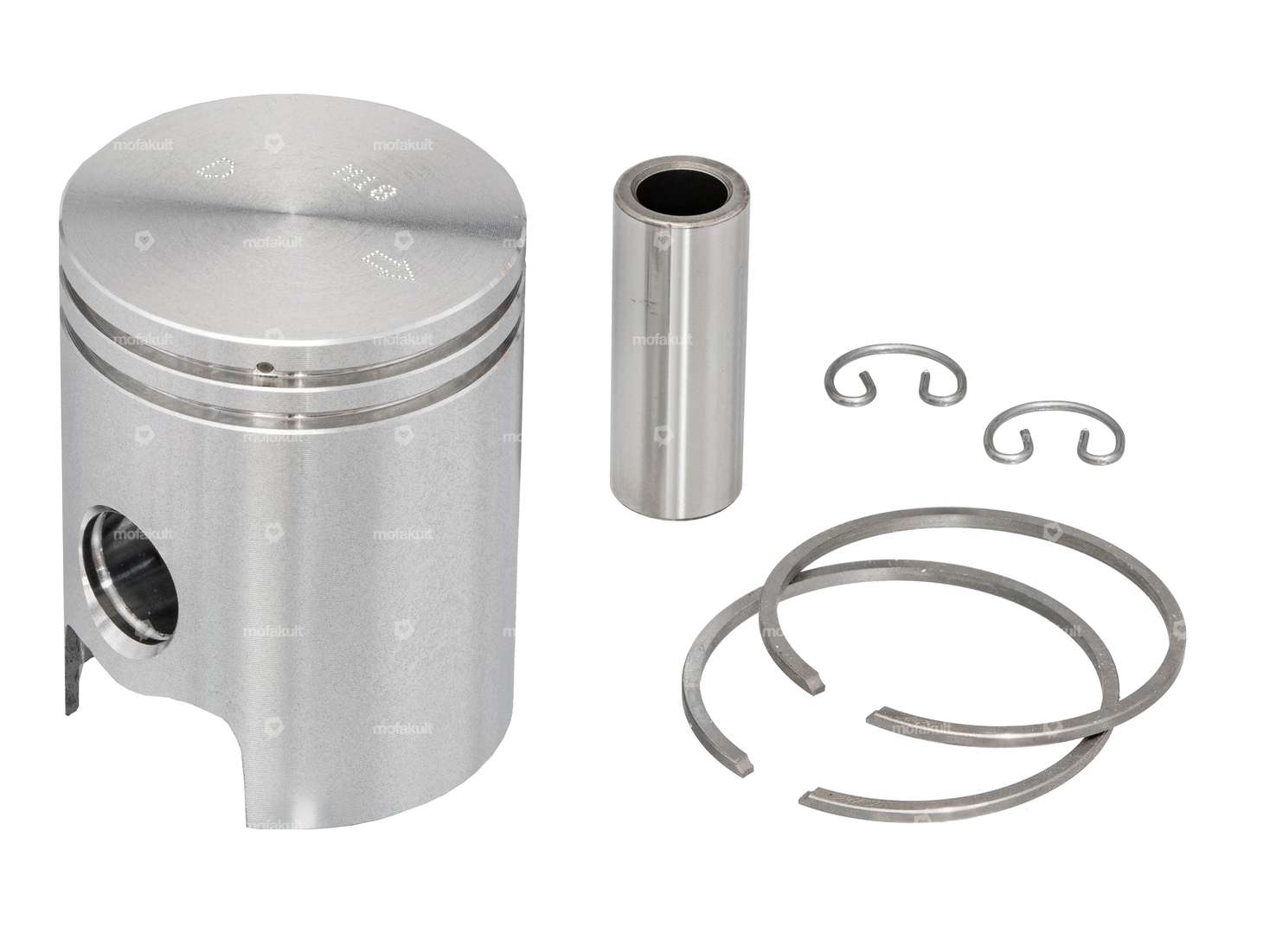

38.78 mm piston kit with two 1.5 mm rectangular piston rings with flank lock (FS) for your moped, moped and small motorcycle with Minarelli 6 V engine.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.78 mm |
| Compression height (C) | 28 mm |
| Total piston height (E) | 49 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 81 g |
Suitable for the following models
| Malaguti |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool
EUR 23.90
Moped fans like you also bought:
Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)
Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Cable length: 2200 mm
EUR 2.90
swiing® revival bottom bracket bushing nylon | Puch Maxi, X30 Sport, Velux, NG-2AH
Total length: 19 mm · Manufacturer: swiing® revival parts · Material: Nylon · Color: black · Surface: blank · Bearing type: Plain bearing · Ø Bundle: 24.1 mm · Ø inside: 16.2 mm · Ø outside: 20.2 mm · Puch OEM number: 349.1.42.005.1
EUR 3.00
Union pedals plastic standard
Total length: 129 mm · Width: 77 mm · Height: 29 mm · Manufacturer: Union · Material: Plastic · Material: Steel · Color: black · Surface: rubberized · Drive: Hexagon socket · Drive: Outer edge · Width across flats SW: 15 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes
EUR 15.50
Meteor piston 38.6 mm oversize | Sachs 50/2 & 503
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 38.55 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 84 g · Pony OEM number: A2774 · Pony OEM number: A4359 · Sachs OEM no.: 0286 377 012 · Sachs OEM no.: 0286 378 006
EUR 60.00
Alligator end piece for inner cable aluminum black (per piece)
Number of connections: 1 pcs · Color: black · Manufacturer: Alligator · Ø inside: 2.3 mm · Ø outside: 2.9 - 4.1 mm · Total length: 12 mm · Number of components: 1 pcs · Material: Aluminum · Surface: anodized · Area of application: Workshop accessories
EUR 0.60

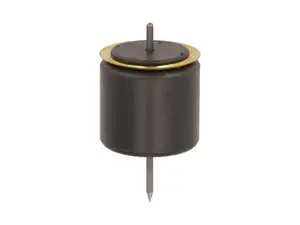

BING Original floats Bing SSB, SSE & SSN
