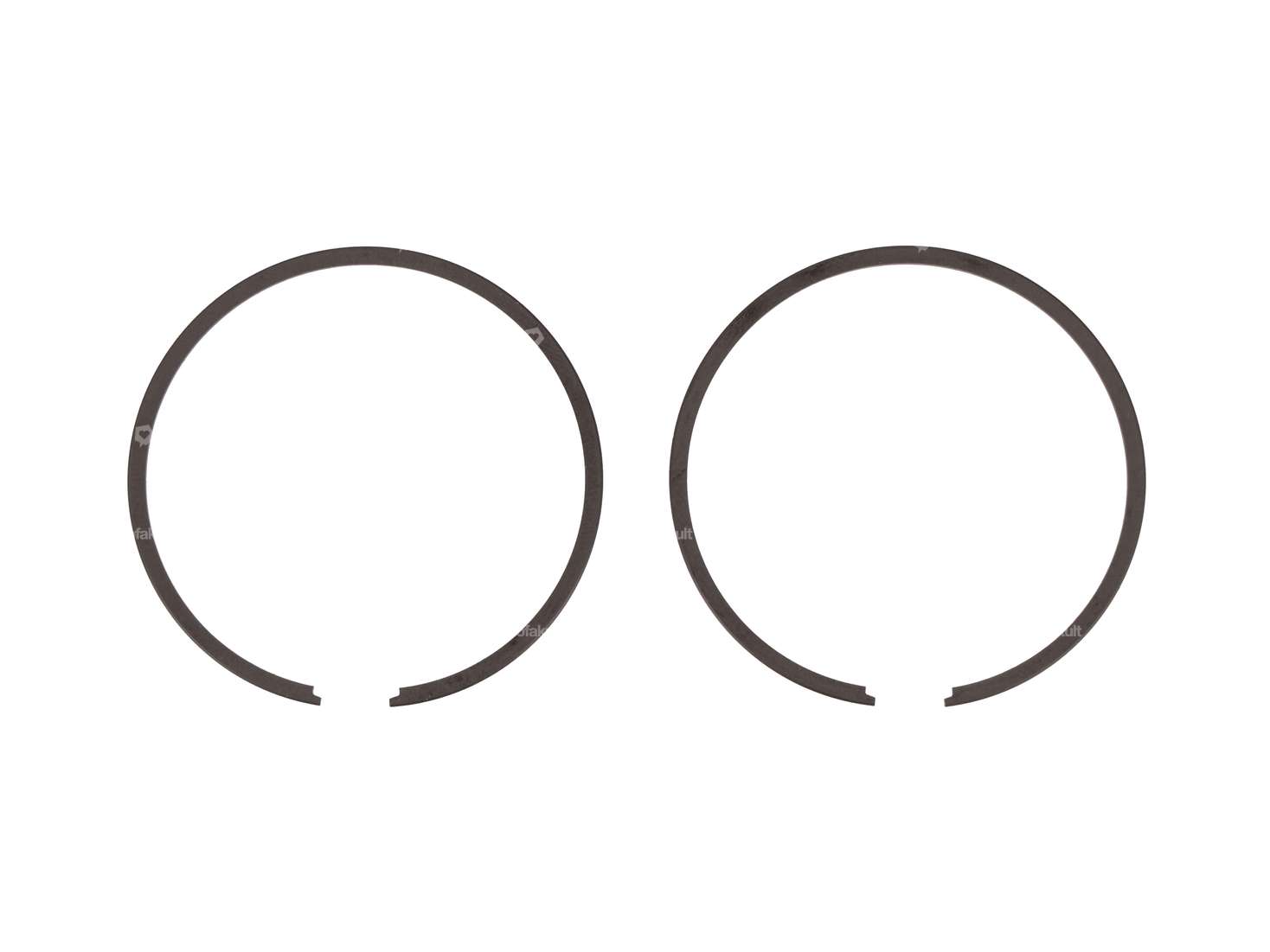

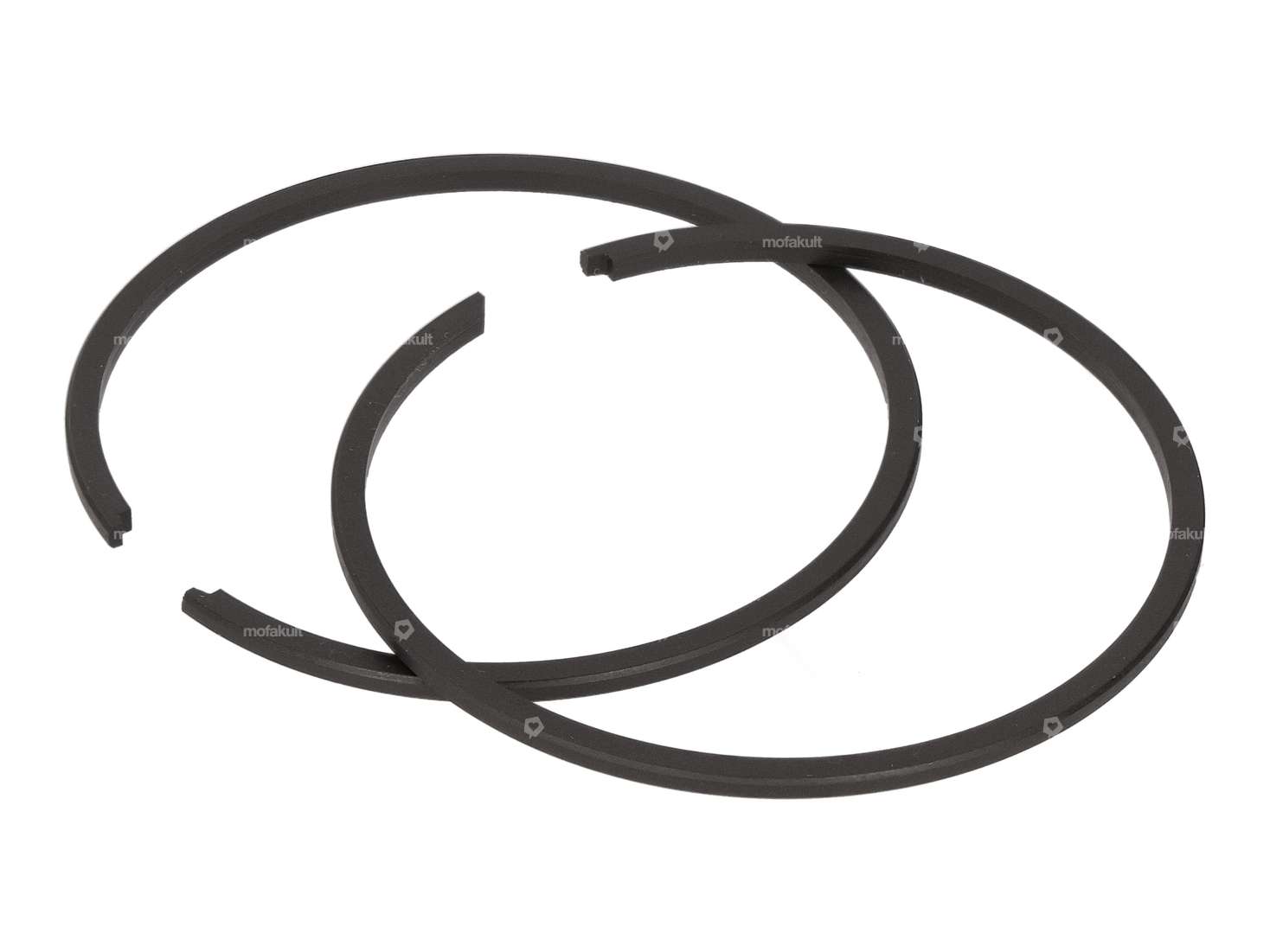

Malossi piston rings Ø 43 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Area of application: Standard · Color: green · Contents [ml]: 1000 ml

Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18.3 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo

Nominal diameter: 43 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning

Malossi piston 43 mm (10 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 88 g

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 90 g

Malossi 7.1 2-t Sport Engine mixed oil semi-synthetic 1 L

Manufacturer: Malossi · Oil type: semi-synthetic · Area of application: Standard · Contents [ml]: 1000 ml

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Ø outside: 10 mm · Number of sensors / lugs: 2 pcs

Shim 15/21/0.5

Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 21 mm · Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled

Fan cover | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Plastic · Color: black · Width: 182 mm · Total length: 230 mm · Height: 20 mm · Number of fixing points: 4 pcs · Ø inside: 120 mm

Malossi gasket set 43 mm cylinder kit

Manufacturer: Malossi · Number of components: 2 pcs · Ø cylinder: 43 mm · Decompressor: Yes · Area of application: Tuning

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

NGK B7ES spark plug long thread

Manufacturer: NGK · Candle designation: B7ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Area of application: Performance · Area of application: Racing · Area of application: Tuning

SKF 6202 C3 ball bearing 15/35/11

Manufacturer: SKF · Bearing type: Deep groove ball bearing · Stock number: 6202 · Width: 11 mm · Inner ring width: 11 mm · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Ø inside: 15 mm · Ø outside: 35 mm · Puch OEM number: 900.4.6202

Malossi piston pin lock Ø 10 mm

Manufacturer: Malossi · Material: Spring steel · Surface: blank · Ø outside: 10 mm

Wedge flywheel / torque converter bell Vario | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Total length: 12.1 mm · Width: 3 mm · Height: 4.9 mm
