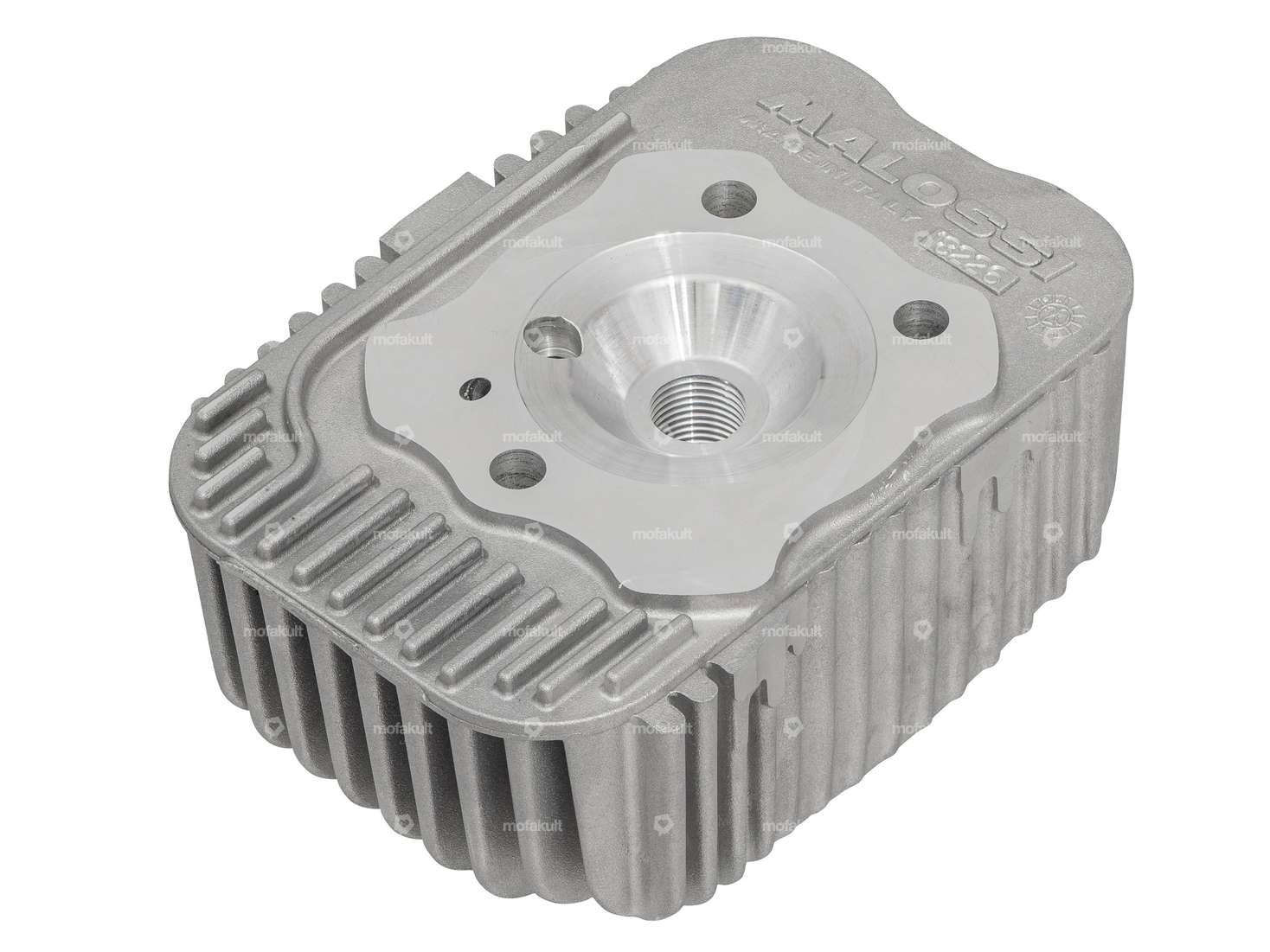

Cylinder cover with large, flat sealing surface of the Malossi brand for 44 - 47 mm racing cylinders.
Thanks to the special design, the head fits all Piaggio mopeds / mopeds. The deco cable can be attached to the Piaggio Si as with the original head.

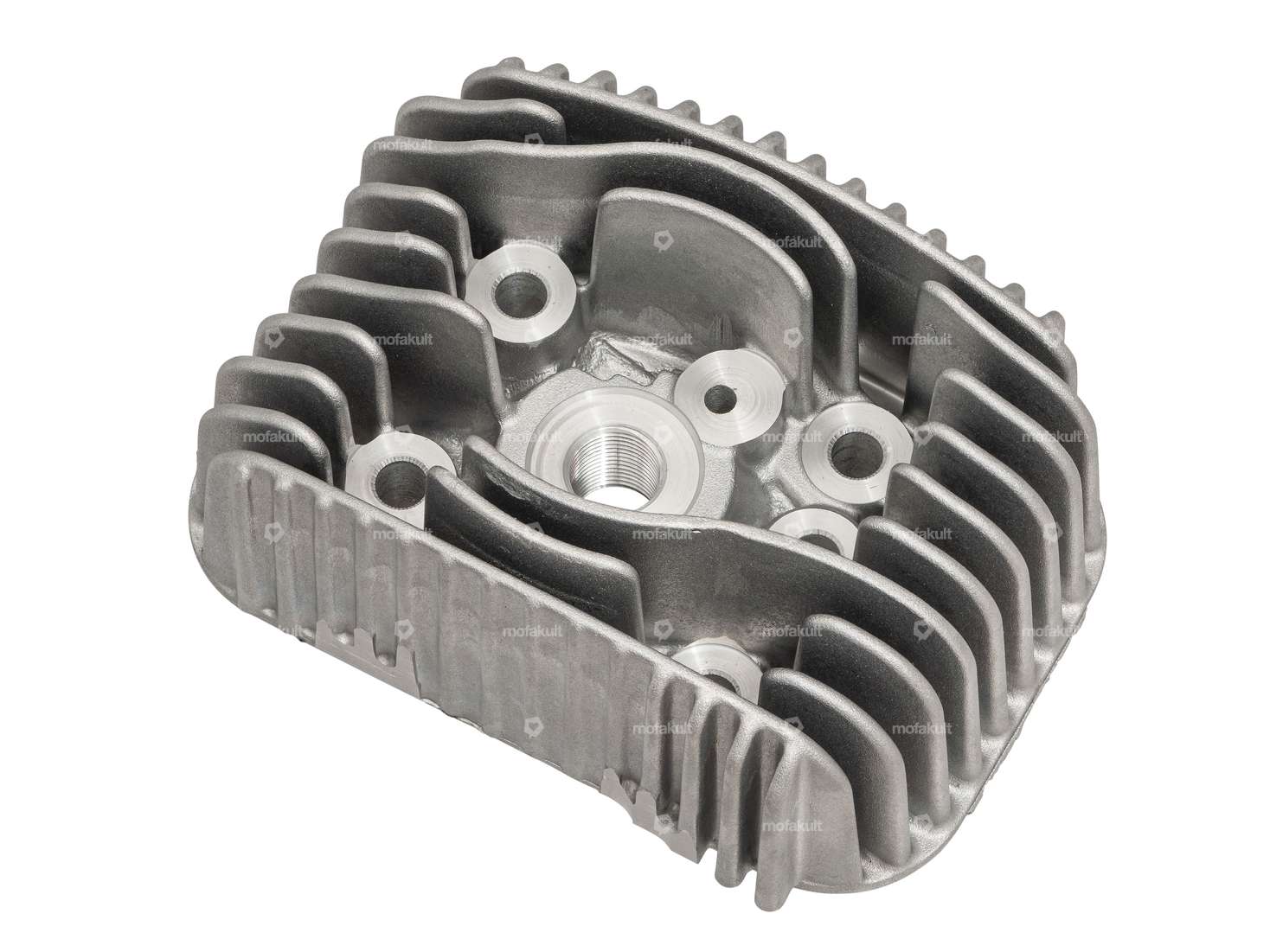

Thanks to the extra cooling fins on the sides, this racing cylinder head can dissipate the heat generated even better and thus protects your racing kit from overheating and piston jamming.

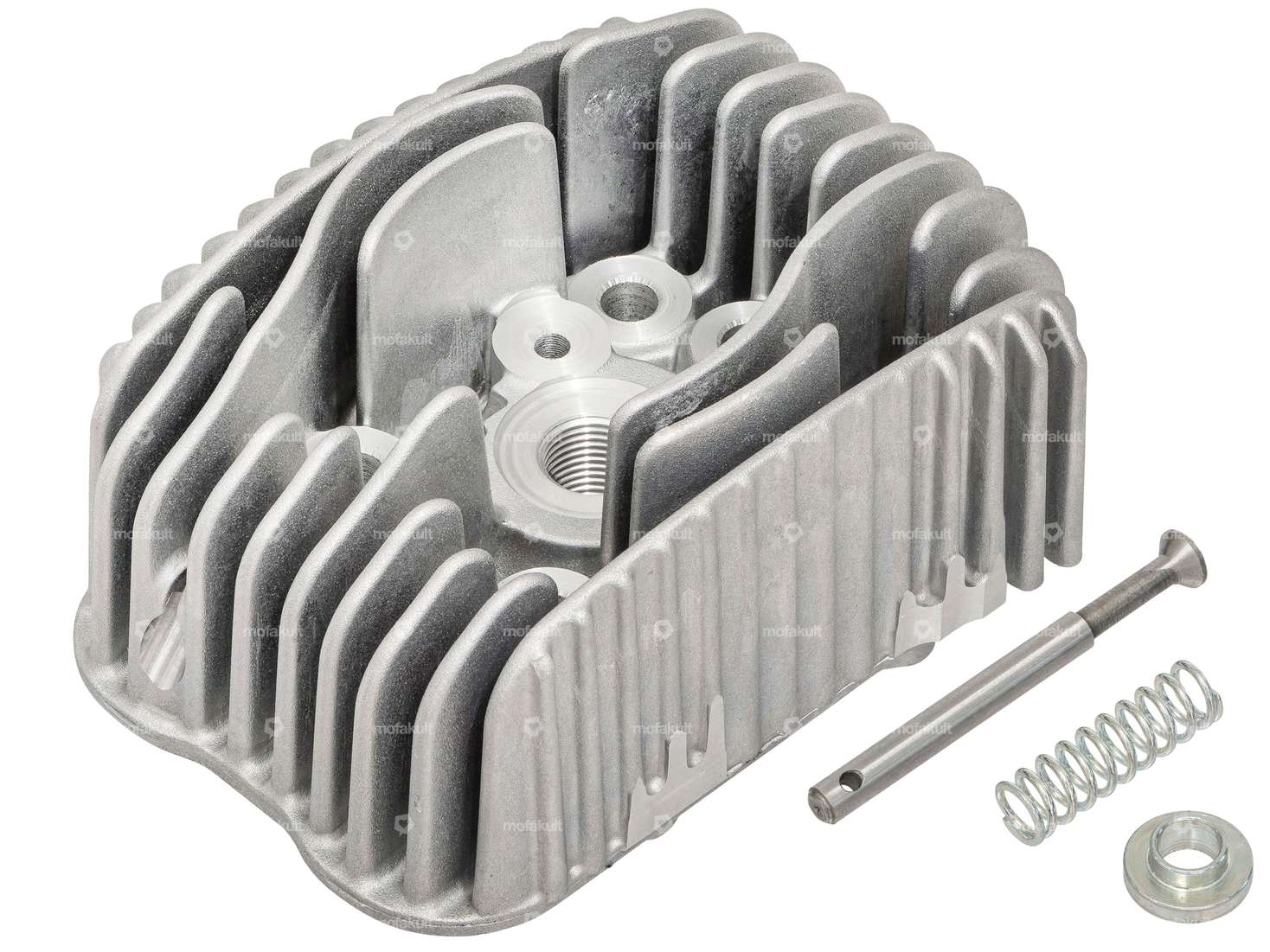

Note: The deco pin must be hammered into the valve seat before initial installation. To do this, place the cylinder head on a stable surface with the valve ribs facing downwards and insert the pin. The deco pin must then be brought into the correct fit using a medium-strength punch and a slotted screwdriver or punch (Ø 4-6 mm). This method is unusual, but recommended by Malossi.
The remaining parts required to complete the valve must be taken from the original valve.
You will find a suitable long-threaded spark plug, complete racing nipples and other add-on parts in the accessories section.
Quality product from the Italian manufacturer Malossi.
Details
| Total length | 122 mm |
| Width | 87 mm |
| Manufacturer | Malossi |
| Area of application | Racing |
| Material | Aluminum |
| Surface | sandblasted |
| Ø cylinder | 44 - 47 mm |
| Candle thread | long |
| Height | 60 mm |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 35 x 55 |
| Decompressor | Yes |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
