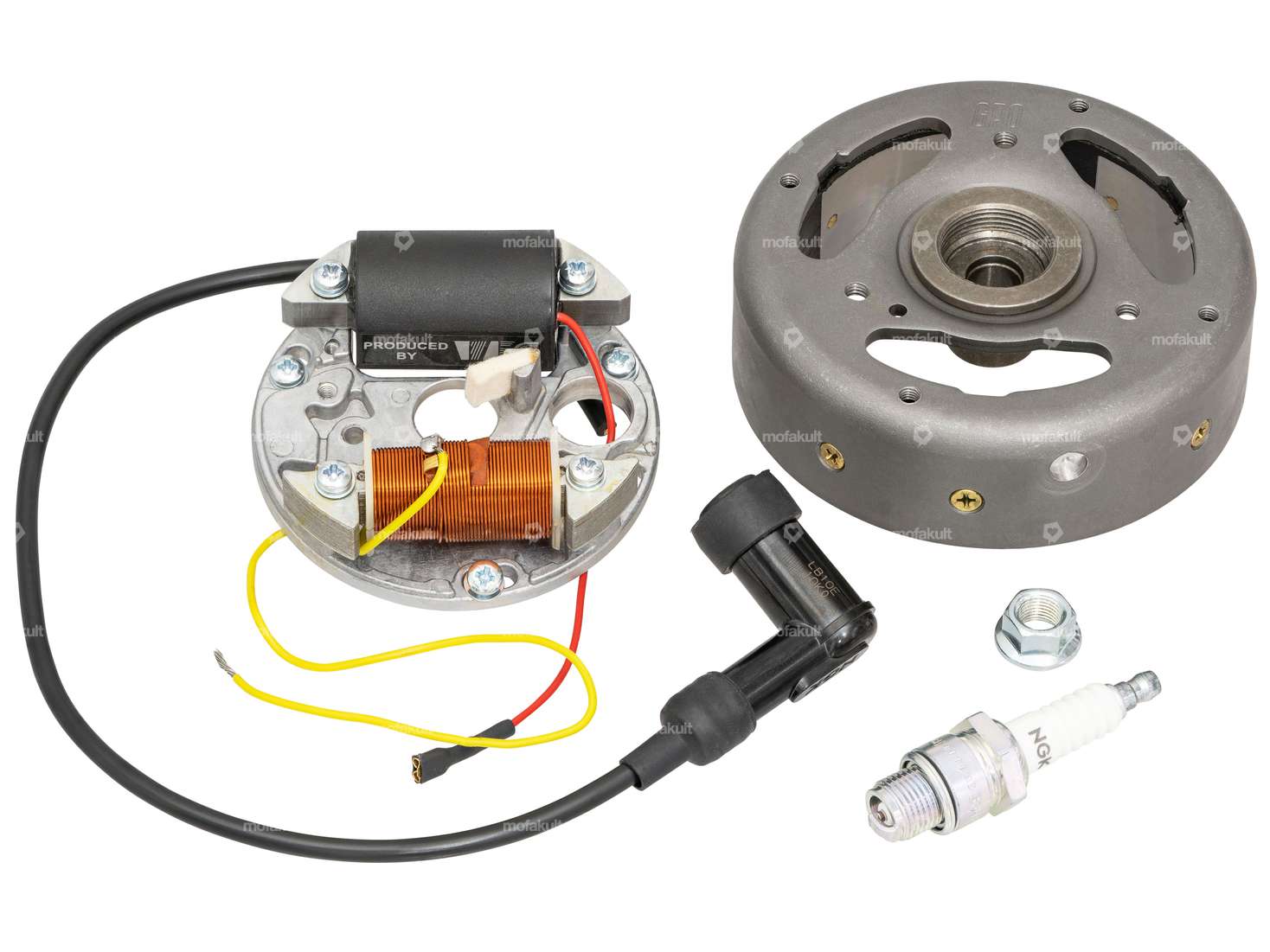

Complete ignition with VEC coil and 6 volt light coil for clockwise rotating automatic engines such as those installed on Puch Maxi S, N mopeds / mopeds with E50 engines.

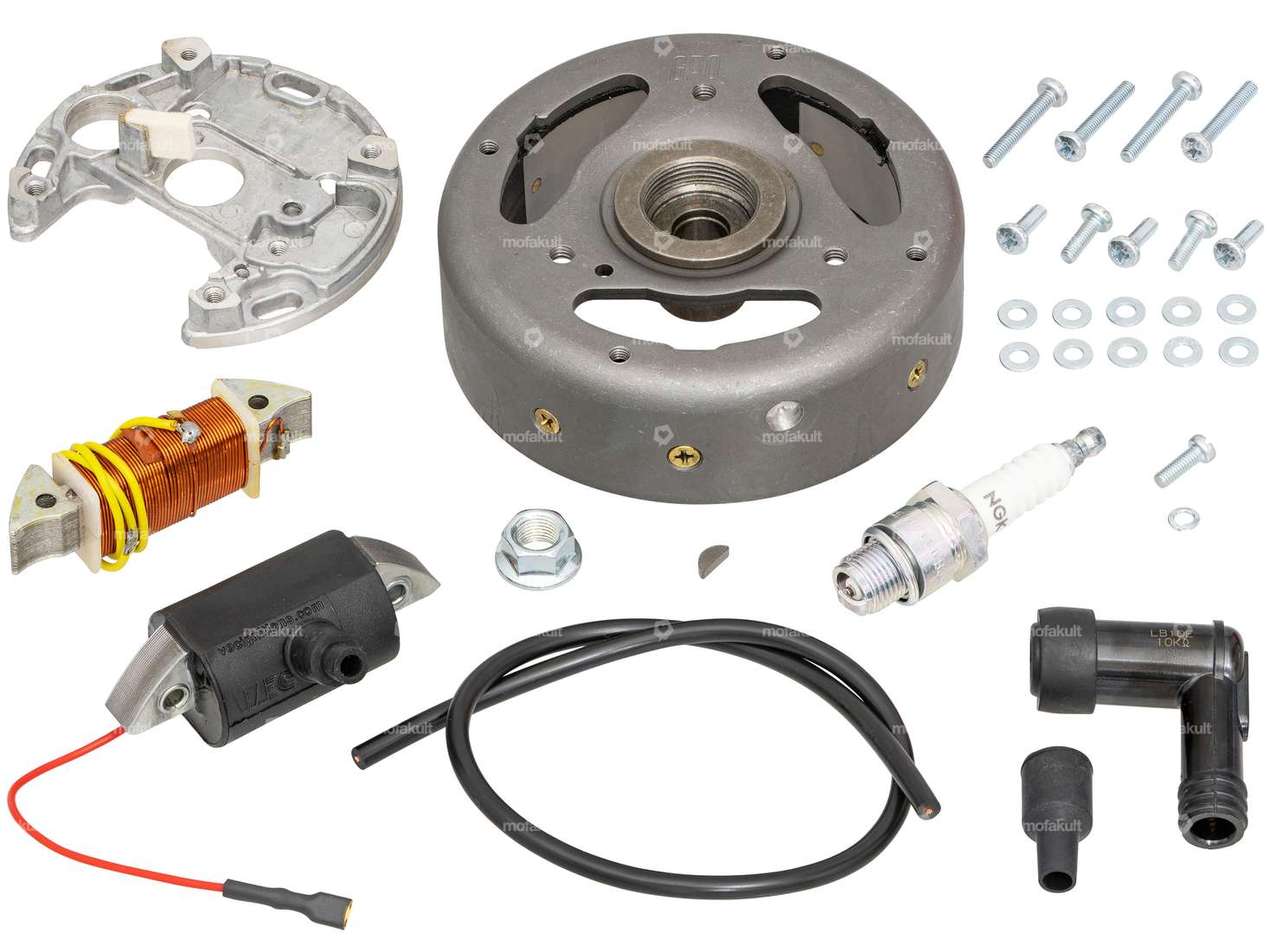

The set includes all parts such as fastening screws, flywheel nut with wedge, ignition plate, ignition and light coil, pole wheel and spark plug connector.
The components are supplied individually and still need to be assembled.
Direction of rotation: Right (clockwise)
Operating voltage of the light system: 6 volts
Wattage of the light system: 17 watts
Ø inside flywheel: 90 mm
Attention: A spark plug connector with at least 10 kOhm discharge must be used, the spark plug must not be discharged!
With Beru or MERIT spark plug connectors, misfiring may occur.
Adjusting the ignition:
In principle, nothing needs to be adjusted on the ignition. Only the ignition plate can be turned slightly for a perfect ignition spark, the rest is regulated by the ignition chip.
In the basic setting, the three fastening screws of the ignition plate are located in the middle of the slotted holes. Pre-tensioning is achieved by turning the ignition plate against the direction of motor rotation. Fine adjustment is carried out at medium speed using the strobe light. The electrode gap on the spark plug must be set to 0.7 - 0.8 mm in advance.
The ignition timing adjustment gun as well as other tools and individual parts for your ignition can be found in the accessories section.
The set includes the following fixed parts:
Manufacturer: GPO · Pony OEM number: A2133, A5532 · Sachs OEM number: 0265 140 005, 0265 206 000
Manufacturer: GPO · Material: Steel, Plastic · Tension: 6 V · Performance: 17 W · Direction of rotation: right · Ø cone small inside: 11.5 mm · Ø cone large inside: 15 mm · Cone length: 18.5 mm · Cone ratio: 1:5 · Ø Internal flywheel: 91.1 mm · Ø Flywheel outside: 116.5 mm · Thread type: MF26x1.5 (fine pitch thread) · Thread length: 7 mm · Weight: 900 g · Height: 36.5 mm
Manufacturer: NGK · Material: Plastic, Rubber · Color: black · Ø cable: 5 mm, 7 mm · Spark plug socket: SAE · Cable available: No · Suppressed: Yes · Resistance: 10000 Ω
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Flange nut · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Ø outside: 18.8 mm · Height: 8.9 mm · Width across flats SW: 14 mm · Pony OEM number: A4513 · Sachs OEM number: 0942 072 102
Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Alternative version of the Puch OEM number: 900.3202, 900.1509
Tension: 6 V · Performance: 17 W · Ø Internal flywheel: 90 mm · Height: 25.2 mm · Total length: 76.8 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.1 mm · Hole spacing: 54 mm · Area of application: Standard, Original
Manufacturer: VEC · Place of use: Internal (in the ignition) · Ø Internal flywheel: 90 mm · Ø cable holder: 5 mm · Cable length: 140 mm, 420 mm · Color: black · Total length: 77 mm · Height: 48 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.6 mm · Hole spacing: 54 mm · Area of application: Standard, Original, Performance
Details
| Manufacturer | VEC, GPO |
| Ø Internal flywheel | 90 mm |
| Tension | 6 V |
| Ø cable | 5 mm |
| Area of application | Tuning, Standard |
| Performance | 17 W |
| Direction of rotation | right |
| Mounting type | Screws |
Suitable for the following models
| Puch | E50 |
