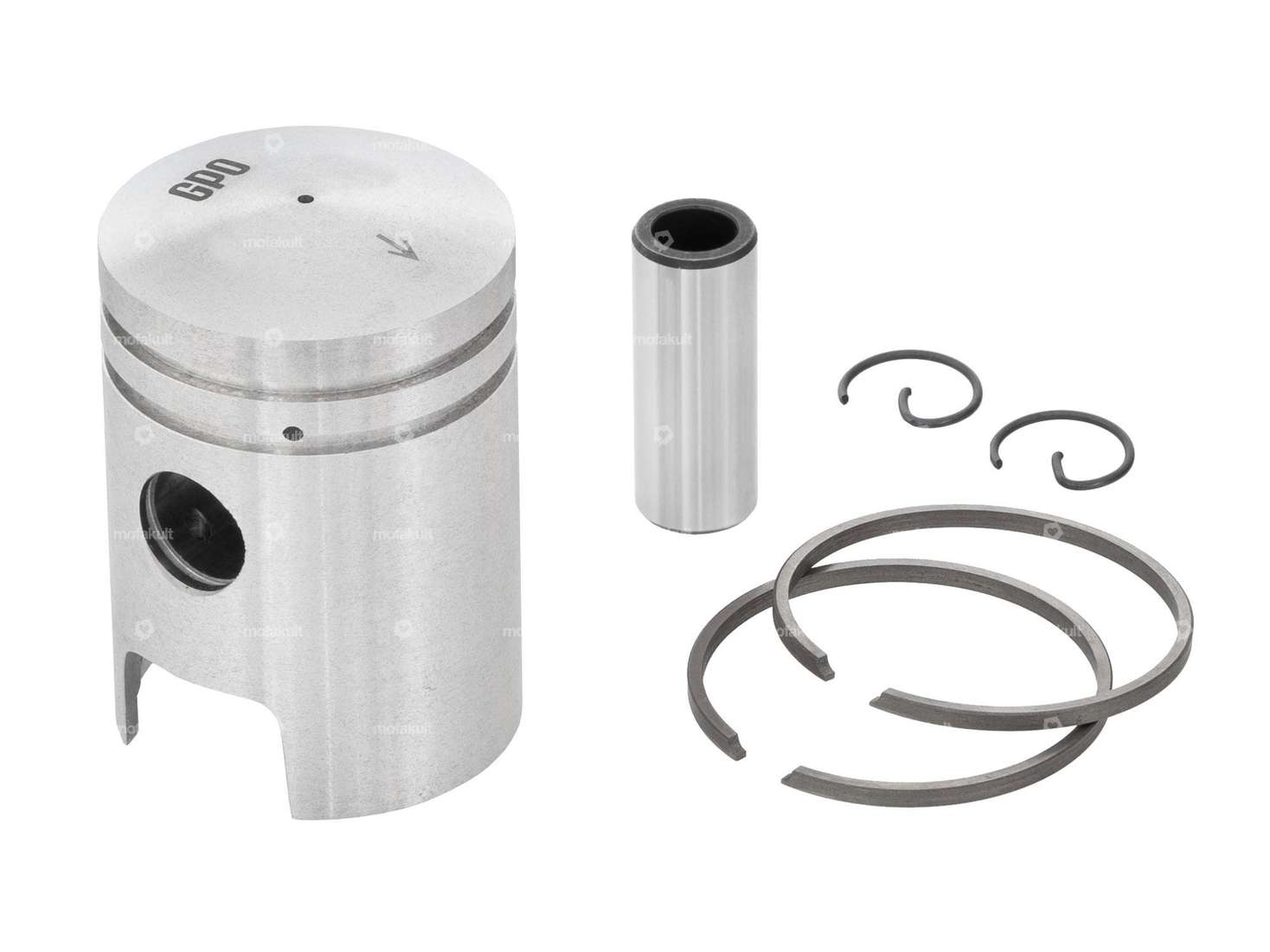

38 mm replacement piston with two rectangular piston rings with flank lock (FS) suitable for original windage-coated aluminum cylinders with nickel-silicon carbide coating (also known under the brand name Nikasil®) from Puch Maxi S / N, as well as Puch X30 Sport mopeds.
Also suitable for blown cast iron cylinders of Puch X30 NG-2A / NG-2AH, as well as Puch X30 Velux mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | GPO |
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.97 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Tolerance group | 3 |
| Piston weight | 73 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
