For: Tomos

32587

GPO gasket set 38 mm cylinder & diaphragm | Tomos A3, A35

Home
| Motor
| Engine block
| Seals & gaskets
EUR 11.90

Incl. 25% VAT.

Gasket set for the 38 mm cylinder and reed valve inlet on your Tomos moped / moped with A3 and A35 engine.
The exhaust gasket is reinforced with a steel mesh and has exceptional temperature resistance thanks to the graphite it contains. The graphite gasket also ensures reliable sealing even at low surface pressures.

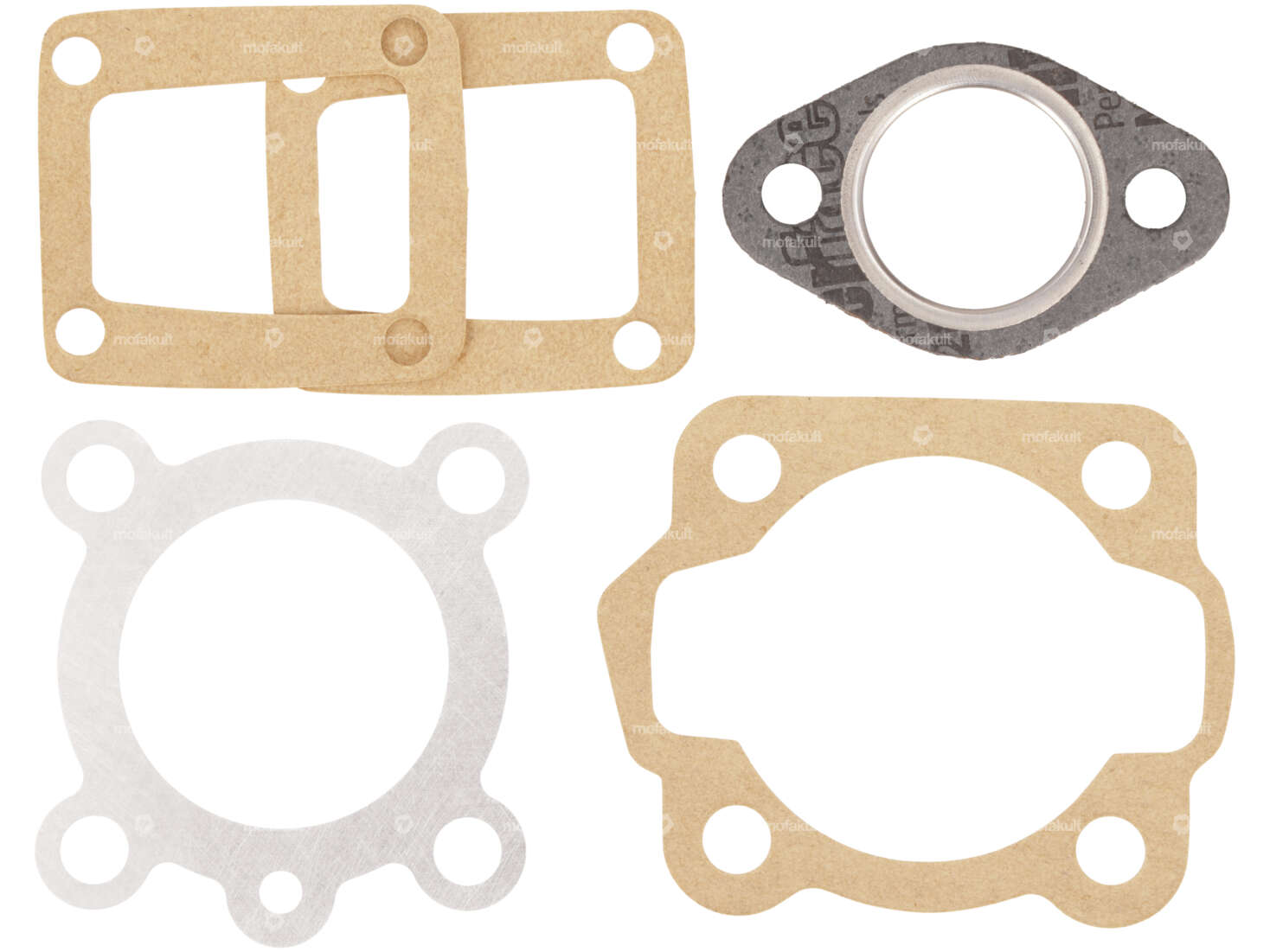

The gasket set contains the following flat gaskets:

  • 2 pcs. Diaphragm gasket 0.35 mm, 39 x 36 mm (Ölpapier)
  • 1 pc. Cylinder base gasket 0.35 mm, 44 x 44 mm (Ölpapier)
  • 1 pc. Cylinder head gasket 0.4 mm, 44 x 44 mm (aluminum)
  • 1 pc. Exhaust gasket 1.4 mm, hole spacing 44 mm (graphite)

You can find sealant and other gaskets in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.

Details

ManufacturerGPO
MaterialOiled paper, Aluminum, Graphite / Graphite
Number of components5 pcs
Thickness0.35 mm, 0.4 mm, 1.4 mm
Hole spacing outlet44 mm
Hole pattern [mm]39 x 36, 44 x 44

Suitable for the following models

Tomos
