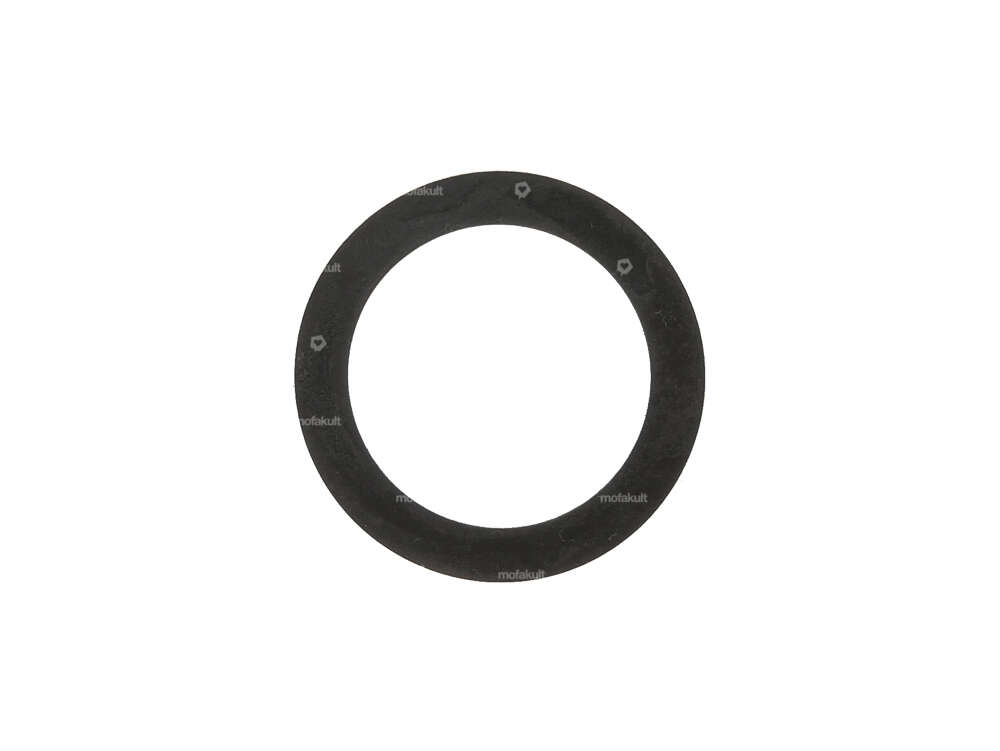

Name: Disk 19/26/0.3 Clutch | Sachs 503 AB, ABL (A5617)
Brand: Sachs
SKU: 30738
Price: 3.50 EUR
Availability: LimitedAvailability

Spacer washer 19.1x26x0.3 mm for the countershaft on Sachs mopeds / mopeds with 503 ABL and AB engines.
The shim is made of hardened spring steel.

Ø inner: 19.1 mm
Ø outer: 26 mm
Thickness: 0.3 mm
Tolerance: DIN988 (permissible for thickness -0.03 mm)

This component is also called a shim washer, bearing washer or thrust washer, depending on the language used.

Original Sachs spare part number: A5617

The set includes the following fixed parts:

Universal

Shim 19/26/0.3

25789

Material: Steel · Surface: blank / oiled · Ø inside: 19 mm · Ø outside: 26 mm · Thickness: 0.3 mm · Nominal diameter inside: 19 mm

Details

Ø inside	19.1 mm
Tolerance	DIN 988 (-0.03 mm)
Ø outside	26 mm
Manufacturer	Sachs
Material	Spring steel
Nominal diameter inside	19 mm
Surface	Hardened
Thickness	0.3 mm
Pony OEM number	A5617
Sachs OEM no.	0244 171 003

Suitable for the following models

Sachs

503 - ABL, AB
