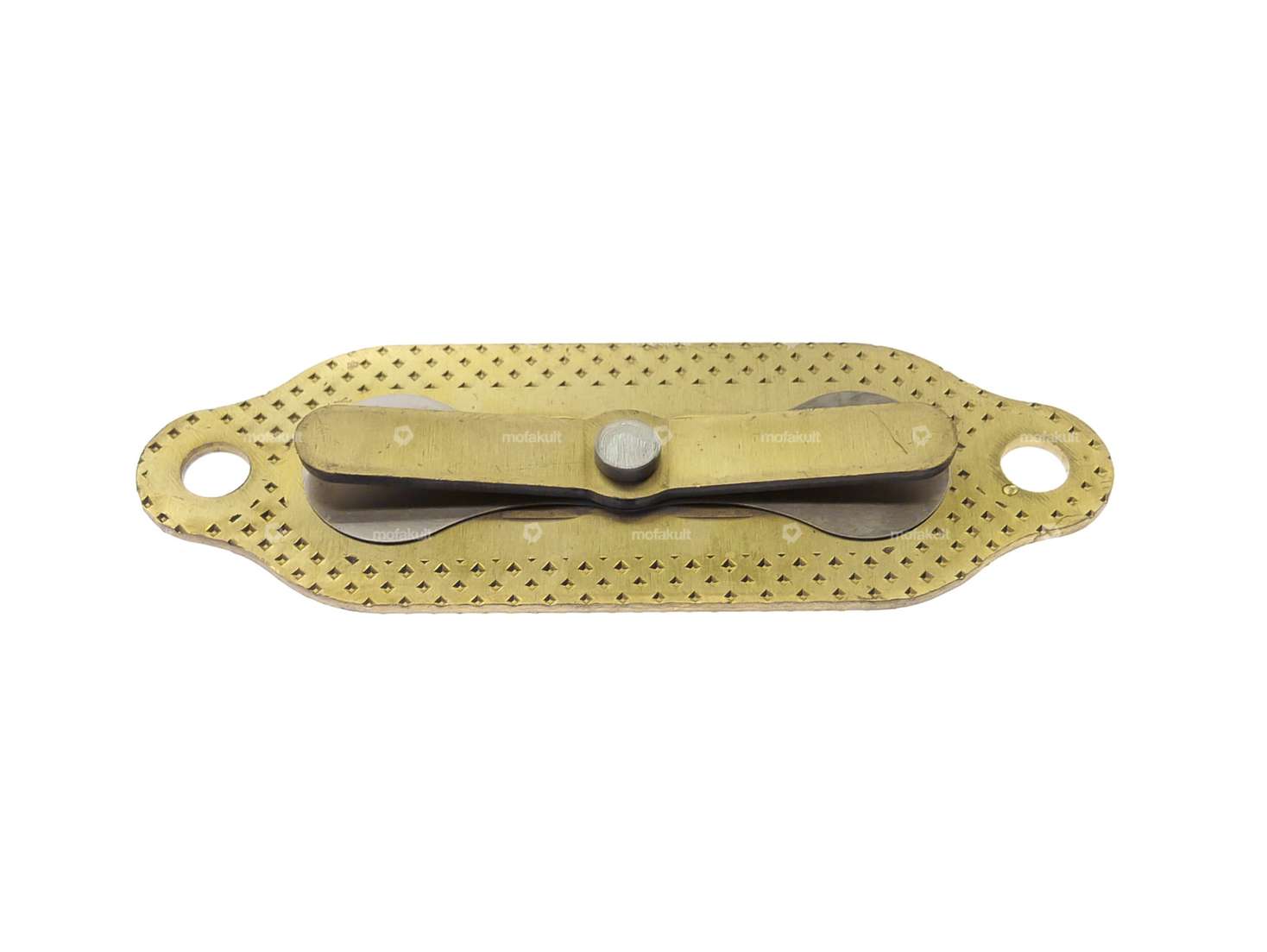

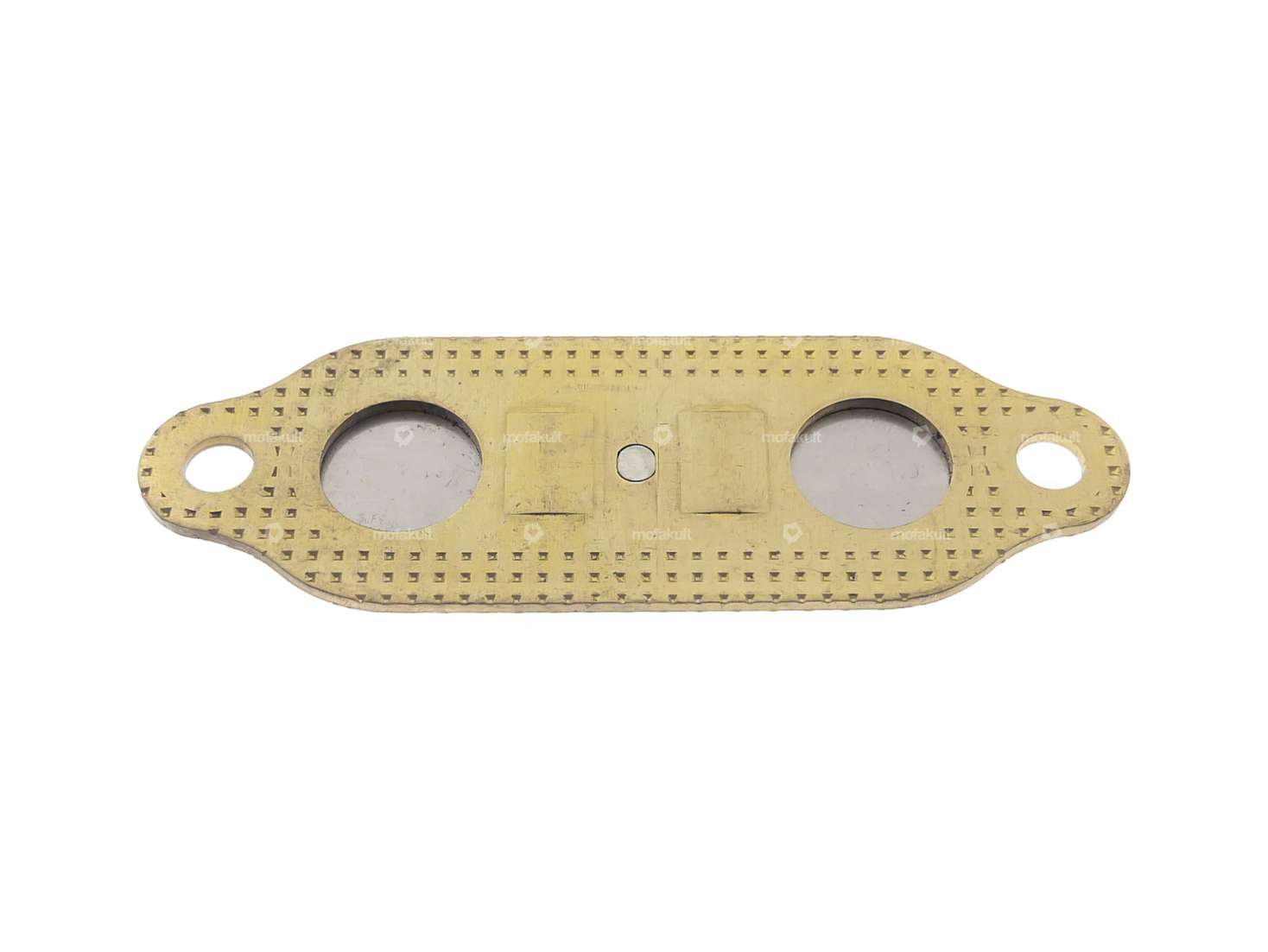

Remounting diaphragm insert for Sachs 50/2 mopeds.
Hole spacing: 67 mm
Original Sachs spare part number: A2624
Details
| Area of application | Standard |
| Material | Brass |
| Number of flaps | 2 pcs |
| Ø mounting hole | 5.2 mm |
| Membrane material | Spring steel |
| Mounting type | Screws |
| Hole spacing | 67 mm |
| Number of fixing points | 2 pcs |
| Pony OEM number | A2624 |
| Sachs OEM no. | 0286 213 010 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) |
