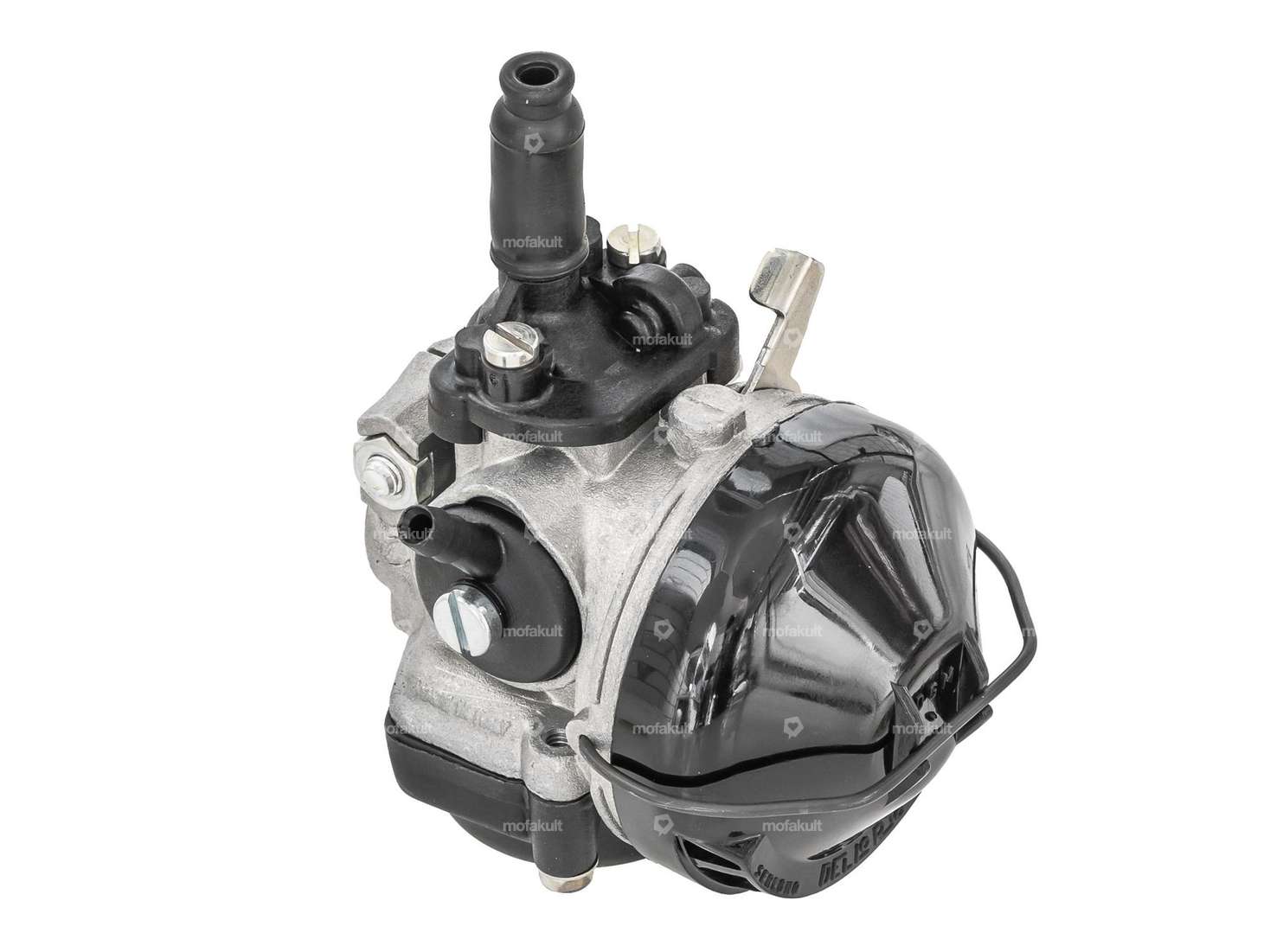

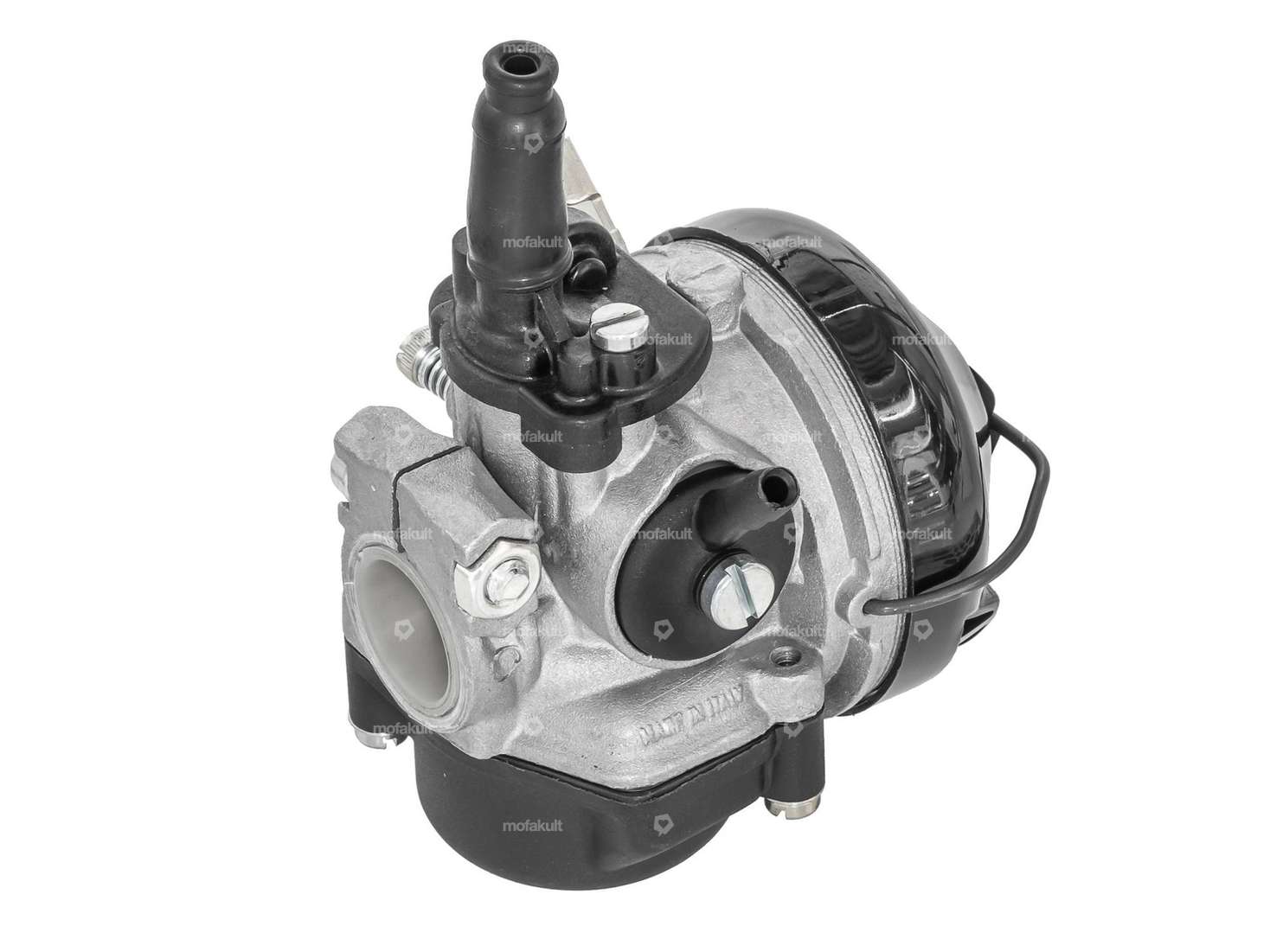

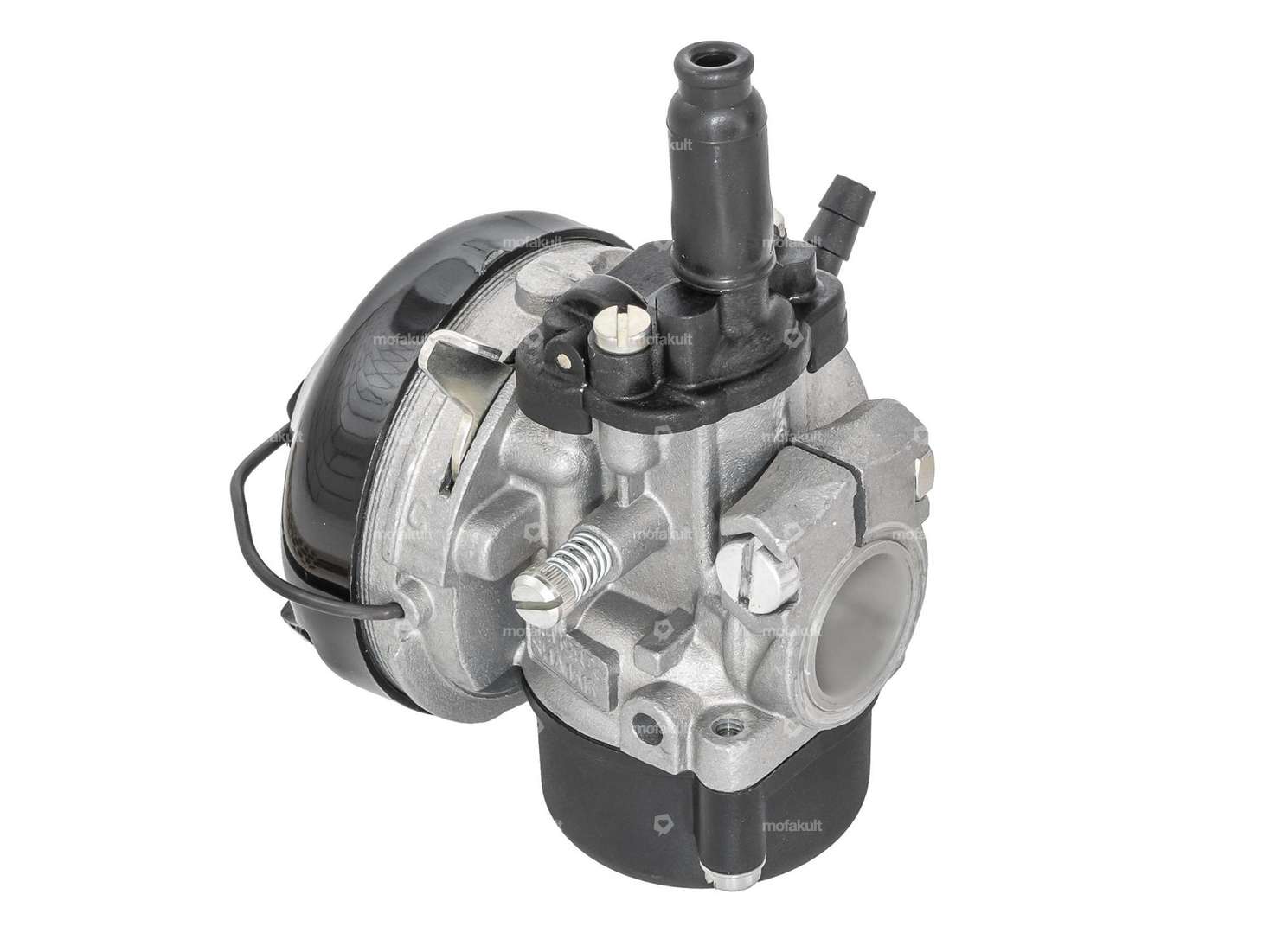

The Dell'Orto 15 / 15 SHA racing carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

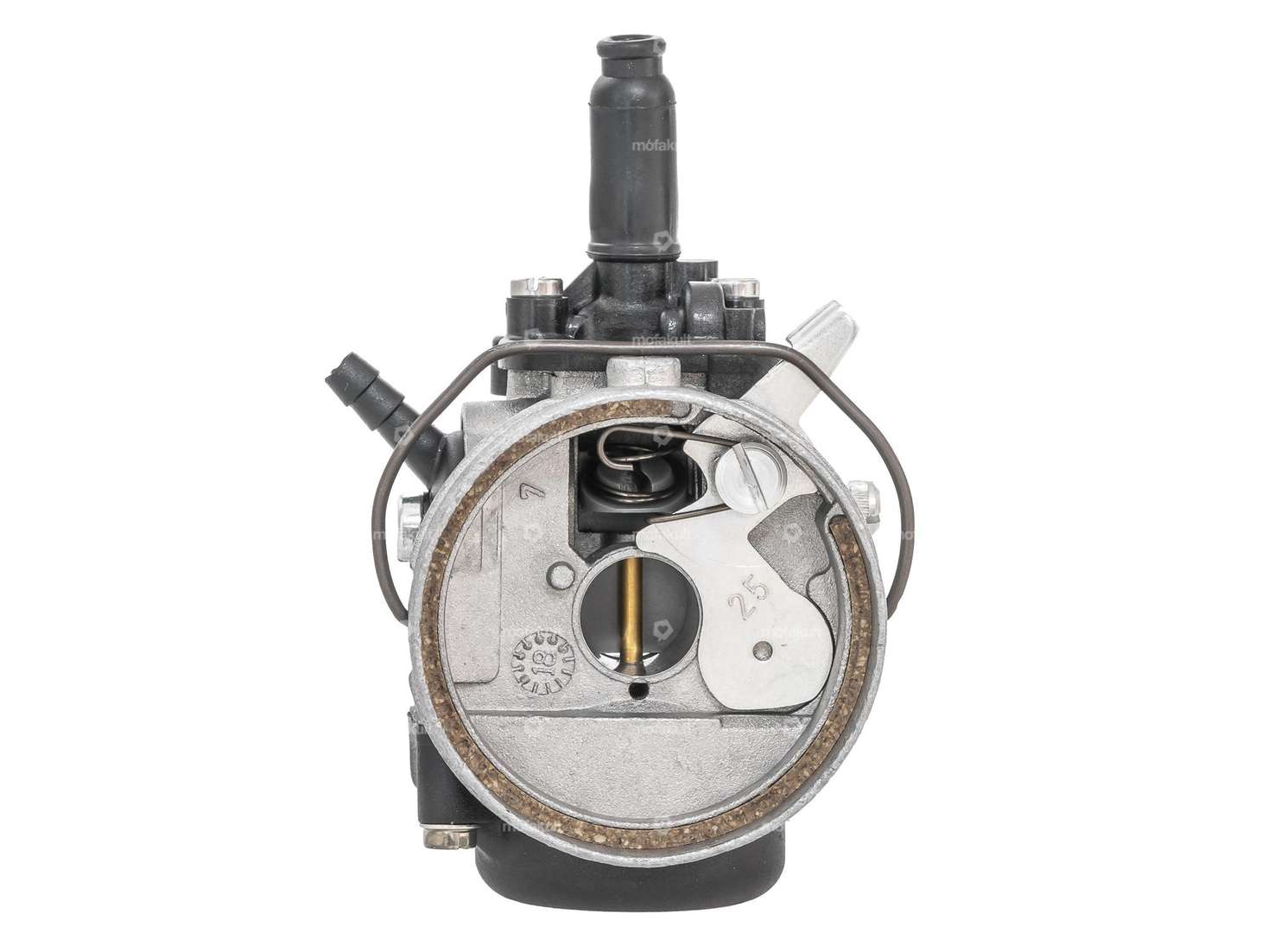

The integrated air filter screen can be easily removed for cleaning purposes.
The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 68
Inlet connection diameter: 18 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 15 mm
Ø passage on intake manifold side: 15 mm
Total height: 100 mm (without pipe bend)
Total length: 82 mm
Total width: 70 mm
For matching nozzles and alternative air filters, see accessories.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Nominal diameter | 15 mm |
| Height | 100 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Area of application | Tuning, Racing |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | SHA |
| Total length | 82 mm |
| Choke control | Hand choke |
| Width | 70 mm |
| Ø fuel hose connection | 6 mm, 5.3 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 68 |
| Ø without reducing sleeve | 21 mm |
| Ø Internal connection | 18 mm |
| Ø Inside entrance | 15 mm |
| Ø Output inside | 15 mm |
| Mounting type | Plug connection clamped |
| Ø Air filter connection | 59 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Camouflaged | No |
