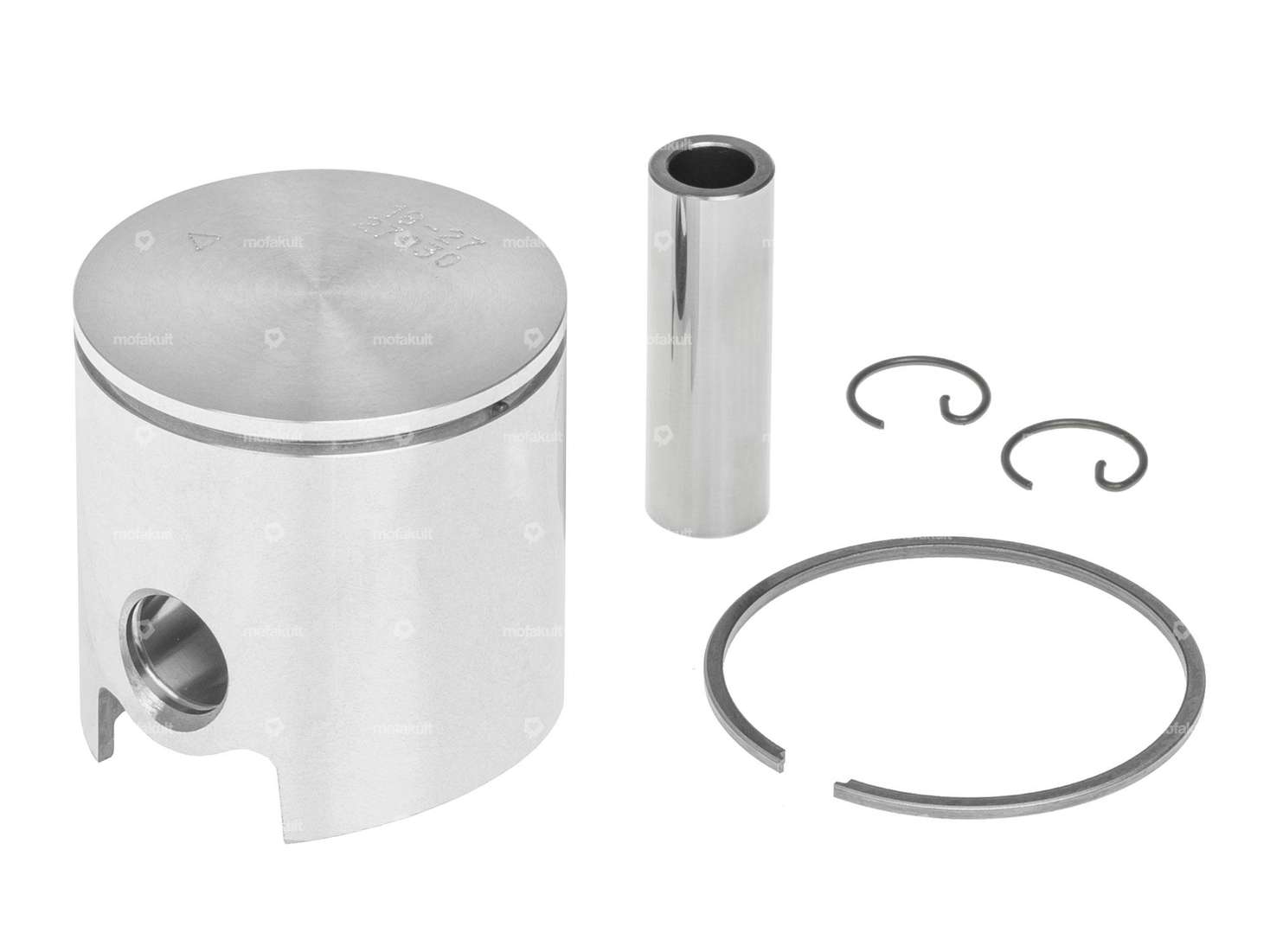

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the Athena racing cylinder suitable for your moped / moped with Sachs 504 and 505 engine.
Details
| Manufacturer | Athena |
| Nominal diameter | 45 mm |
| Ø outside piston (A) | 44.92 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 28.2 mm |
| Total piston height (E) | 45.2 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | A |
| Piston weight | 98 g |
Suitable for the following models
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG) |
| Hercules | Great - 2, 3, 4, 5, Optima |
