For: Sachs · Hercules

20271

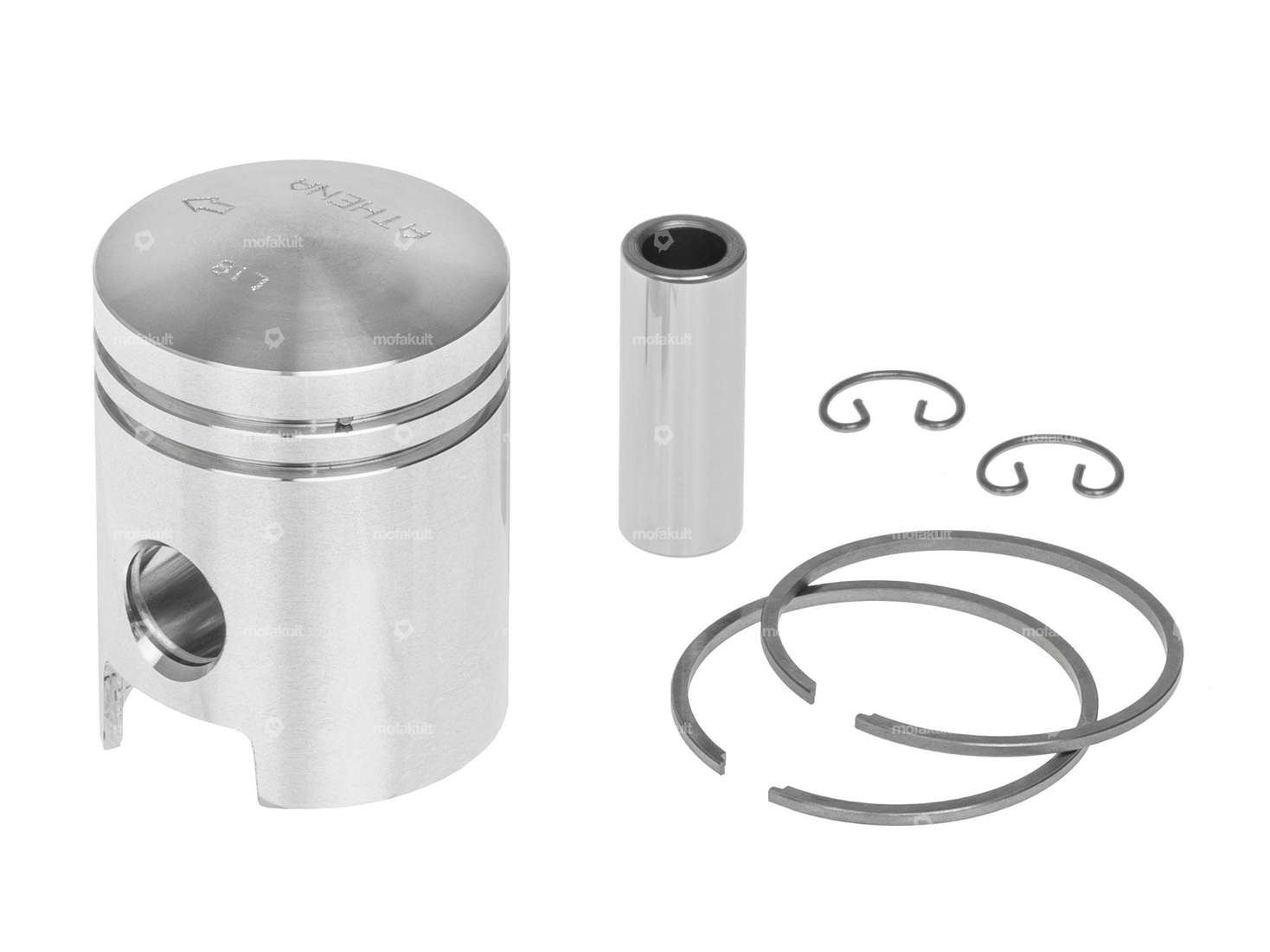

Athena piston 38 mm #A | Sachs 504, 505

Home
| Motor
| Cylinder
| Piston
EUR 84.90

Incl. 25% VAT.

38 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) for your moped / moped with Sachs 504, 505 engine.

Details

ManufacturerAthena
Nominal diameter38 mm
Ø outside piston (A)37.94 mm
Ø piston pin (B)12 mm
Compression height (C)29.25 mm
Curvature (D)1.85 mm
Total piston height (E)52.14 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupA
Piston weight79 g

Suitable for the following models

Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT), 2A (HG), 2B (HG)

Hercules

Great - 2, 3, 4, 5, Optima
