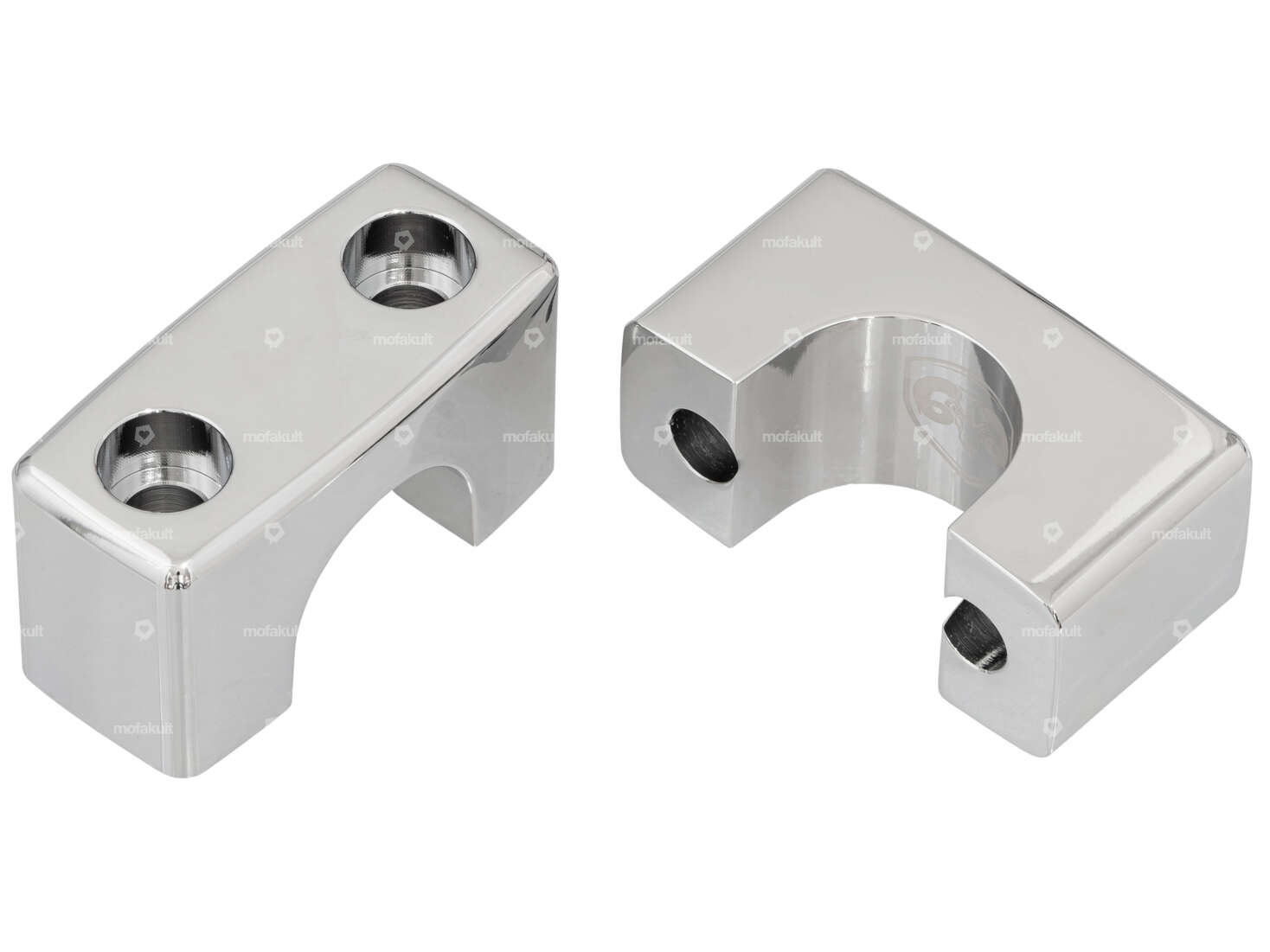

66HEROES Clamping bridges aluminum chrome | Puch

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

GPO cable duct black | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Plastic · Color: black · Total length: 320 mm · Width: 58 mm · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm

swiing® revival screw M7x35 clamping bridge | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Thread type: M7x1 (standard thread) · Drive: Hexagon socket · Screw head: Cylinder head · Ø External head: 10.5 mm · Width across flats SW: 5 mm · Shank: No · Total length: 41.6 mm · Thread length: 34.6 mm · Strength class: 8.8 · Number of components: 1 pcs

swiing® revival spring washer pedal axle 0.6 mm

Spring design: Special spring · Material thickness: 0.6 mm · Ø inside: 17 mm · Ø outside: 29 mm · Manufacturer: swiing® revival parts · Total length: 1.7 mm · Material: Spring steel · Surface: galvanized (blue)

swiing® revival spacer bushing 10 mm pedal axle PVC

Manufacturer: swiing® revival parts · Material: Polyvinyl chloride (PVC-U_hard) · Ø inside: 16.3 mm · Nominal diameter inside: 16.5 mm · Ø outside: 24 mm · Total length: 10 mm

GPO pedal cranks chrome (pair) | Puch

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 180 mm · Crank length (center-center): 156 mm · Wide intake: 28 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm · Thread type: FG14.3 (9/16" 20G)

Union pedals plastic sport black

Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Color: black · Color: silver · Drive: Hexagon socket · Drive: Outer edge · Thread type: FG14.3 (9/16" 20G) · Width across flats SW: 15 mm · Total length: 130 mm · Width: 76 mm · Height: 30 mm · Reflectors: Yes

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Area of application: Standard · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Height: 13.8 mm · Thread depth: 12 mm · Width across flats SW: 30 mm

GPO pedal axle 28 teeth chrome | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Number of teeth: 28 pcs · Wavelength from wreath: 40 mm · Wavelength from wreath: 183 mm · Ø outside: 15.9 mm · Ø Outer sprocket: 120 mm
